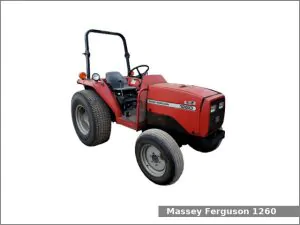

Massey Ferguson 1260

Massey Ferguson 1260The Massey Ferguson 1260 is a 4WD compact utility tractor from the 1200 Compact series. This tractor was manufactured by Iseki for distributor Massey Ferguson in from 1992 to 2002. The Massey Ferguson 1260 is equipped with a 1.5 L (91.4 cu·in) three-cylinder diesel engine and a synchro shuttle transmission with 16 forward and 16 reverse gears and dry disc clutch.

The Massey Ferguson 1260 compact utility tractor used the Iseki E3CD engine. It is a 1.5 L, 1,497 cm2, (91.4 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 84.0 mm (3.31 in) of the piston stroke. The compression ratio rating is 21.8:1. This engine produced 40.5 PS (29.8 kW; 40.0 HP) at 2,600 rpm of output power.

The Massey Ferguson 1260 is equipped with power assist steering, wet disc brakes, two-post foldable ROPS, and 30.0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 1260 compact utility tractor:

  • Mid-mount Massey Ferguson 1231 72 in (1,820 mm) mower deck
  • Front-mount Massey Ferguson 1405 66 in (1,670 mm) blade
  • Front-mount Massey Ferguson 1410 63 in (1,600 mm) two-stage snow blower with hydraulic lift
  • Massey Ferguson 1246 loader
  • Massey Ferguson 1217 backhoe

Massey Ferguson 1260 Specifications

General Specifications
Model Massey Ferguson 1260
Length 3,090 mm (121.7 in)
Width 1,420 mm (55.9 in)
Height 2,190 mm (86.2 in)
Wheel base 1,720 mm (67.7 in)
Ground clearance 330 mm (13 in)
Weight 1,450 kg (3,197 lbs)
Fuel tank capacity 30.0 liters (7.9 US gal.; 6.6 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Iseki E3CD
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,497 cm2, (91.4 cu·in)
Bore and stroke 87.0 mm X 84.0 mm (3.43 in X 3.31 in)
Compression ratio 21.8:1
Horsepower 40.5 PS (29.8 kW; 40 HP) at 2,600 rpm
Torque 118.0 N·m (12 kg·m, 87 ft·lb) at 1,600 rpm
Starter Electric
Coolant capacity: 6.5 L (6.9 US. qt, 5.7 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power assist
Brakes Wet disc
Transmission model
Transmission type Synchro shuttle with dry disc clutch
Gears 16 forward and 16 reverse
Speed Forward: 26.1 kmh (16.2 mph) Reverse: kmh (0 mph)
Tires
Front tires Ag: 8.00-16
Rear tires Ag: 13.6-24
Three-Point Hitch
Category I
Control type Position and draft control
Lift capacity (at ends) 1,300 kg (2,870 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent with electro-hydraulic clutch (optional)
Middle PTO speed 1925 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 25.0 L (6.6 US. gal, 5.5 Imp. gal.)
Pump flow 6.3 gpm (23.8 lpm)
Total flow 9.6 gpm (36.3 lpm)
