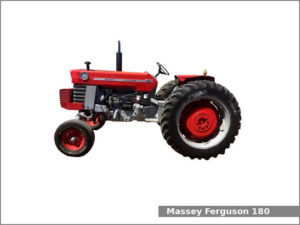

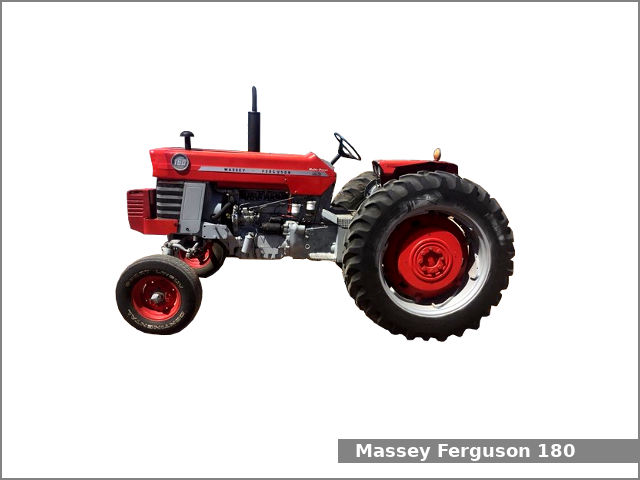

The Massey Ferguson 180 is a 2WD row-crop tractor manufactured by Massey Ferguson in Detroit, Michigan, USA from 1964 to 1975.
The Massey Ferguson 180 is equipped with one of three engines: a 3.9 L (236.0 cu·in) four-cylinder diesel engine, a 3.9 L (236.0 cu·in) four-cylinder gasoline engine or a 3.4 L (206.0 cu·in) four-cylinder gasoline engine and one of two transmissions: a partial power shift transmission with 12 forward and 4 reverse gears or an unsynchronized gear transmission with 6 forward and 2 reverse gears.
The tractor could be equipped with the following engines:
- Perkins A4.236. It is a 3.9 L, 3,867 cm2, (236.0 cu·in) four-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 0 PS ( kW; 0 HP) at rpm of output power.
- Perkins AG4.236. It is a 3.9 L, 3,867 cm2, (236.0 cu·in) four-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 7.0:1.
- Continental G206. It is a 3.4 L, 3,375 cm2, (206.0 cu·in) four-cylinder natural aspirated gasoline engine.
The Massey Ferguson 180 is equipped with power steering, differential mechanical disc brakes, an open operator station, and 109.8 liters (29 US gal.; 24.2 Imp. gal) fuel tank.
Following attachments are available for the MF 180 row-crop tractor:
- Massey Ferguson 245 loader
- Massey Ferguson 245 high loader
Massey Ferguson 180 Specifications
| General Specifications | |
| Model | Massey Ferguson 180 |
| Length | 3,200 mm (126 in) |
| Width | 1,850 mm (72.8 in) |
| Height | 2,070 mm (81.5 in) |
| Wheel base | 2,360 mm (92.9 in) |
| Weight |
Gas: 3,035 kg (6,691 lbs) Diesel: 3,065 kg (6,757 lbs) |
| Fuel tank capacity | 109.8 liters (29 US gal.; 24.2 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Perkins A4.236 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 3.9 L, 3,867 cm2, (236.0 cu·in) |
| Bore and stroke | 98.0 mm X 127.0 mm (3.86 in X 5 in) |
| Compression ratio | 16.0:1 |
| Horsepower | – |
| Starter | Electric |
| Oil capacity: | 8.0 L (8.5 US. qt, 7 Imp. qt.) |
| Engine | |
| Engine model | Perkins A4.236 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 3.9 L, 3,867 cm2, (236.0 cu·in) |
| Bore and stroke | 98.0 mm X 127.0 mm (3.86 in X 5 in) |
| Compression ratio | 7.0:1 |
| Horsepower | – |
| Starter | Electric |
| Oil capacity: | 8.0 L (8.5 US. qt, 7 Imp. qt.) |
| Engine | |
| Engine model | Continental G206 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 3.4 L, 3,375 cm2, (206.0 cu·in) |
| Bore and stroke | – |
| Horsepower | – |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Differential mechanical disc |
| Transmission model | Multi-Power |
| Transmission type | Partial power shift |
| Gears | 12 forward and 4 reverse |
| Speed | Forward: 30.8 kmh (19.1 mph) Reverse: 15.2 kmh (9.4 mph) |
| Transmission oil capacity | 30.3 L (8 US. gal, 6.7 Imp. gal.) |
| Transmission model | – |
| Transmission type | Unsynchronized gear |
| Gears | 6 forward and 2 reverse |
| Tires | |
| Front tires | Ag: 7.50-15 |
| Rear tires | Ag: 15.5-38 |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pressure | 1500 psi (103.4 bar) |
| Valves | 1 |
| Total flow | 4.8 gpm (18.2 lpm) |
