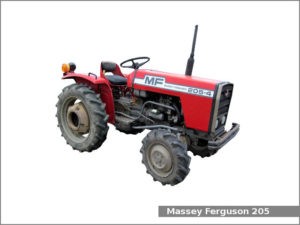

Massey Ferguson 205

Massey Ferguson 205The Massey Ferguson 205 is a 2WD ro 4WD (205-4) compact utility tractor manufactured by Toyosha for distributor Massey Ferguson in Osaka, Japan from 1978 to 1984. The Massey Ferguson 205 is equipped with a 1.1 L (65.0 cu·in) two-cylinder diesel engine and a transmission with 6 forward and 2 reverse gears.

The MF 205 compact utility tractor used the Toyosha engine. It is a 1.1 L, 1,065 cm2, (65.0 cu·in) two-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 88.0 mm (3.46 in) of the piston stroke. The compression ratio rating is 23.0:1. This engine produced 20.3 PS (14.9 kW; 20 HP) at 2,400 rpm of output power.

The Massey Ferguson 205 is equipped with manual steering, differential mechanical drum and shoe brakes, open operator station. This tractor could be equipped with the Massey Ferguson 216 loader.

Massey Ferguson 205 Specifications

General Specifications
Model Massey Ferguson 205
Length
Width
Height
Wheel base 1,400 mm (55.1 in)
Weight 2WD: 865 kg (1,905 lbs)
4WD: 1,005 kg (2,215 lbs)
Fuel tank capacity
Battery 12V
Cabin type Open operator station
Engine
Engine model Toyosha
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 1.1 L, 1,065 cm2, (65.0 cu·in)
Bore and stroke 88.0 mm X 88.0 mm (3.46 in X 3.46 in)
Compression ratio 23.0:1
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 2,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual
Brakes Differential mechanical drum and shoe
Transmission model
Transmission type
Gears 6 forward and 2 reverse
Speed Forward: 12.4 kmh (7.7 mph) Reverse: 11.3 (7 mph)
Tires
Front tires Ag: 4.00-12 (2WD), 6-14 (4WD)
Rear tires Ag: 8.3/8-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
