Massey Ferguson 240

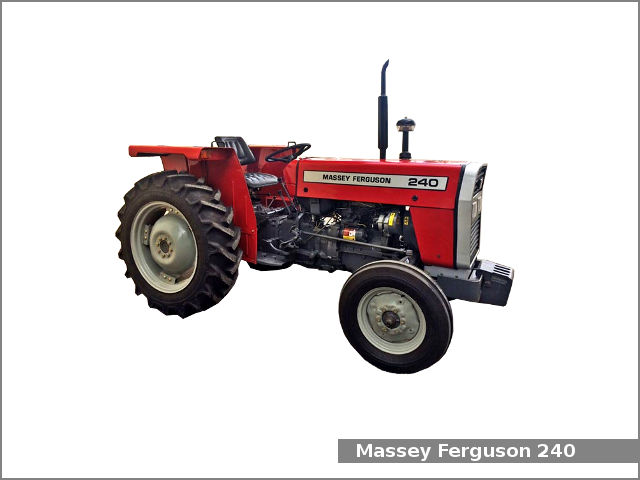

Massey Ferguson 240The Massey Ferguson 240 is a 2WD or 4WD utility tractor from the 200 series. This tractor was manufactured by the Massey Ferguson in Coventry, England from 1980 to 1999. The MF 240 is equipped with a 2.5 L three-cylinder diesel engine and sliding gear transmission with 8 forward and 2 reverse gears.

The Massey Ferguson 240 utility tractor used the Perkins AD3.152 engine. It is a 2.5 L, 2,491 cm2, (152.0 cu·in) three-cylinder natural aspirated diesel engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 46.6 PS (34.3 kW; 46.0 HP) at 2,000 rpm of maximum output power.

The MF 240 is equipped with hydrostatic power steering, mechanical drum (early versions) or differential mechanical wet disc (later versions) brakes, two-post ROPS (canopy was available as an option) and 47.7 liters (12.6 US gal.; 10.5 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 240 utility tractor:

  • Massey Ferguson 232 loader
  • Massey Ferguson 236 loader

Massey Ferguson 240 Specifications

General Specifications
ModelMassey Ferguson 240
Length 2WD: 3,160 mm (124.4 in)
4WD: 3,220 mm (127.1 in)
Width1670 mm (65.7 in)
Height 2WD: 2,200 mm (86.6 in)
4WD: 2,180 mm (86.4 in)
Wheel base 2WD: 1,930 mm (76.0 in)
4WD: 1,950 mm (77.0 in)
Weight 2WD: 1,820 kg (4,0140 lbs)
4WD: 2,080 mm (4,585 in)
Fuel tank capacity47.7 liters (12.6 US gal.; 10.5 Imp. gal)
Battery12V
Cabin typeTwo-post ROPS or Canopy (optional)
Engine
Engine modelPerkins AD3.152
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.5 L, 2,491 cm2, (152.0 cu·in)
Bore and stroke91.0 mm X 127.0 mm (3.58 in X 5 in)
Horsepower46.6 PS (34.3 kW; 46.0 HP) at 2,000 rpm
StarterElectric
Coolant capacity:9.8 L (10.4 US. qt, 8.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
Brakes Mechanical drum (early version)
Differential mechanical wet disc (later)
Transmission model
Transmission typeSliding gear
Gears8 forward and 2 reverse
Speed Forward: 30.2 kmh (18.8 mph) Reverse: 12.4 (7.7 mph)
Tires
Front tiresAg: 6.00-16 (2WD), 10.5/80-18 (4WD)
Rear tiresAg: 13.6-28 (2WD), 14.9-24 (4WD)
Three-Point Hitch
CaterogyII/I
Control typePosition and draft control
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeLive with 2-stage clutch
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity32.6 L (34.45 US. qt, 28.68 Imp. qt.)
Valves2
Pump flow9.5 gpm (36 lpm)
