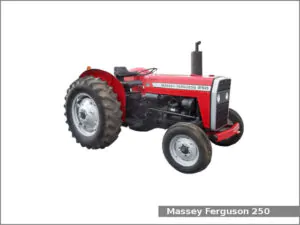

The Massey Ferguson 250 is a 2WD tractor manufactured by Massey Ferguson in Coventry, England from 1983 to 1986. The Massey Ferguson 250 is equipped with a 2.5 L (152.0 cu·in) three-cylinder diesel engine and a transmission with 8 forward and 2 reverse gears.
The MF 250 tractor used the Perkins AD3.152 engine. It is a 2.5 L, 2,491 cm2, (152.0 cu·in) three-cylinder natural aspirated diesel engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 18.5:1. This engine produced 40.5 PS (29.8 kW; 40.0 HP) at 2,250 rpm of PTO output power.
The Massey Ferguson 250 is equipped with power assist steering, differential mechanical wet disc brakes, open operator station with two-post ROPS, and 48.0 liters (12.7 US gal.; 10.6 Imp. gal) fuel tank.
Massey Ferguson 250 Specifications
| General Specifications | |
| Model | Massey Ferguson 250 |
| Length | 3,360 mm (132.3 in) |
| Width | 1,870 mm (73.6 in) |
| Height | – |
| Wheel base | 1,890 mm (74.4 in) |
| Weight | 2,080 kg (4,586 lbs) |
| Fuel tank capacity | 48.0 liters (12.7 US gal.; 10.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station with two-post ROPS |
| Engine | |
| Engine model | Perkins AD3.152 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.5 L, 2,491 cm2, (152.0 cu·in) |
| Bore and stroke | 91.0 mm X 127.0 mm (3.58 in X 5 in) |
| Compression ratio | 18.5:1 |
| Horsepower | 40.5 PS (29.8 kW; 40.0 HP) at 2,250 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power assist |
| Brakes | Differential mechanical wet disc |
| Transmission model | – |
| Transmission type | – |
| Gears | 8 forward and 2 reverse |
| Speed | Forward: 33.1 kmh (20.6 mph) Reverse: 13.7 (8.5 mph) |
| Tires | |
| Front tires | Ag: 6.50-16 |
| Rear tires | Ag: 13.6-28 |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Valves | 1 to 3 |
| Total flow | 14.0 gpm (53 lpm) |
