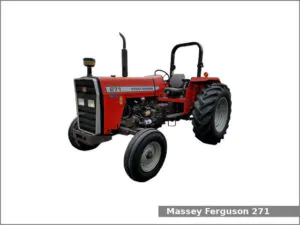

The Massey Ferguson 271 is a 2WD utility tractor from the 200 One series. This tractor was manufactured by Massey Ferguson in from 1998 to 2000. The Massey Ferguson 271 is equipped with a 4.2 L (256.3 cu·in) four-cylinder diesel engine and a sliding gear transmission with 8 forward and 2 reverse gears.
The MF 271 utility tractor used the Perkins 1004.4 engine. It is a 4.2 L, 4,200 cm2, (256.3 cu·in) four-cylinder natural aspirated diesel engine with 103.0 mm (4.06 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 66 PS (48.5 kW; 65.0 HP) at 2,200 rpm of output power.
The Massey Ferguson 271 is equipped with power steering, independent hydraulic wet disc brakes, two-post folding ROPS, and 81.4 liters (21.5 US gal.; 17.9 Imp. gal) fuel tank. Ths tractor could be equipped with the Massey Ferguson 1036 loader.
Massey Ferguson 271 Specifications
| General Specifications | |
| Model | Massey Ferguson 271 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | 2,290 mm (90.2 in) |
| Weight (shipping) | 2,780 kg (6,129 lbs) |
| Fuel tank capacity | 81.4 liters (21.5 US gal.; 17.9 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post folding ROPS |
| Engine | |
| Engine model | Perkins 1004.4 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 4.2 L, 4,200 cm2, (256.3 cu·in) |
| Bore and stroke | 103.0 mm X 127.0 mm (4.06 in X 5 in) |
| Horsepower | 66 PS (48.5 kW; 65.0 HP) at 2,200 rpm |
| Starter | Electric |
| Coolant capacity: | 14.0 L (14.8 US. qt, 12.3 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Independent hydraulic wet disc |
| Transmission model | – |
| Transmission type | Sliding gear |
| Gears | 8 forward and 2 reverse |
| Speed | Forward: 28.3 kmh (17.6 mph) Reverse: 11.7 (7.3 mph) |
| Tires | |
| Front tires | Ag: 7.50-16 |
| Rear tires | Ag: 16.9-30 |
| Three-Point Hitch | |
| Category | II |
| Control type | |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Live wit two-stage clutch |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Hydraulic capacity | 42.0 L (11.1 US. gal, 9.2 Imp. gal.) |
| Valves | 2 |
| Pump flow | 10.3 gpm (39 lpm) |
