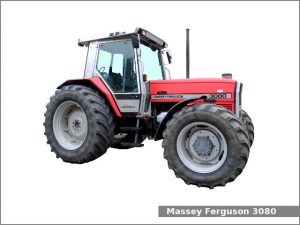

Massey Ferguson 3080

Massey Ferguson 3080The Massey Ferguson 3080 is a 2WD or 4WD row-crop tractor manufactured by Massey Ferguson from 1986 to 1988. The Massey Ferguson 3080 is equipped with a 5.8 L (353.8 cu·in) six-cylinder diesel engine and a transmission with 32 forward and 32 reverse gears.

The MF 3080 row-crop tractor used the Perkins A6.354 engine. It is a 5.8 L, 5,797 cm2, (353.8 cu·in) six-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 97.1 PS (71.4 kW; 95.7 HP) at 2,200 rpm of output power.

The Massey Ferguson 3080 is equipped with power steering, wet disc brakes, cab (standard), and 189.3 liters (50 US gal.; 41.6 Imp. gal) fuel tank.

Massey Ferguson 3080 Specifications

General Specifications
Model Massey Ferguson 3080
Length 4,470 mm (176 in)
Width
Height (cab) 2,770 mm (109.1 in)
Wheel base
Weight 2WD: 4,175 kg (9,204 lbs)
4WD: 4,400 kg (9,700 lbs)
Fuel tank capacity 189.3 liters (50 US gal.; 41.6 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model Perkins A6.354
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.8 L, 5,797 cm2, (353.8 cu·in)
Bore and stroke 98.0 mm X 127.0 mm (3.86 in X 5 in)
Horsepower 97.1 PS (71.4 kW; 95.7 HP) at 2,200 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type
Gears 32 forward and 32 reverse
Tires
Front tires Ag: 11.00-16 (2WD), 13.6R28 (4WD)
Rear tires Ag: 16.9R38
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540/1000 rpm
