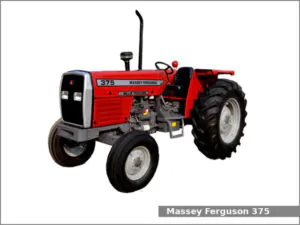

Massey Ferguson 375 (1988-1997)

Massey Ferguson 375The Massey Ferguson 375 is a 2WD or 4WD utility tractor from the 300 series. This tractor was manufactured by Massey Ferguson in Coventry, England from 1987 to 1997. This second version was manufactured from 1988 to 1997. The MF 375 is equipped with a 3.9 L (236.0 cu·in) four-cylinder diesel engine and one of two transmissions: a synchromesh transmission with 12 forward and 4 reverse gears or a two-speed power shift transmission with 12 forward and 4 reverse gears.

The MF 375 utility tractor used the Perkins A4.236 engine. It is a 3.9 L, 3,867 cm2, (236.0 cu·in) four-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 73 PS (53.7 kW; 72.0 HP) at 2,200 rpm of output power.

The Massey Ferguson 375 is equipped with hydrostatic power steering, differential wet disc brakes, two-post ROPS, and 107.9 liters (28.5 US gal.; 23.7 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 375 utility tractor:

  • Massey Ferguson 236 loader
  • Massey Ferguson 838 loader (only for 4WD version)

Massey Ferguson 375 Specifications

General Specifications
ModelMassey Ferguson 375
Length 2WD: 3,660 mm (144.1 in)
4WD: 3,880 mm (152.8 in)
Width 2WD: 1,970 mm (77.6 in)
4WD: 1,920 mm (75.6 in)
Height 2WD: 2,380 mm (93.7 in)
4WD: 2,430 mm (95.7 in)
Wheel base 2WD: 2,130 mm (83.9 in)
4WD: 2,340 mm (92.1 in)
Ground clearance 2WD: 250 mm (9.8 in)
4WD: 310 mm (12.2 in)
Weight 2WD: 2,740 kg (6,041 lbs)
4WD: 3,265 kg (7,198 lbs)
Fuel tank capacity107.9 liters (28.5 US gal.; 23.7 Imp. gal)
Cabin typeTwo-post ROPS
Engine modelPerkins A4.236
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement3.9 L, 3,867 cm2, (236.0 cu·in)
Bore and stroke98.0 mm X 127.0 mm (3.86 in X 5 in)
Horsepower73 PS (53.7 kW; 72.0 HP) at 2,200 rpm
Coolant capacity:15.1 L (16 US. qt, 13.3 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential wet disc
Transmission model
Transmission typeSynchromesh
Gears12 forward and 4 reverse
Transmission modelMulti-Power
Transmission typeTwo-speed power shift
Gears12 forward and 4 reverse
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Control type
Lift capacity (at ends)1,925 kg (4,245 lbs)
PTO (Power take-off shaft)
Rear PTO typeLive or independent
Rear PTO speed540, 540/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Pressure3000 psi (206.8 bar)
Pump flow 9.5 gpm (36 lpm)
3-point: 4.4 gpm (16.7 lpm)
Total flow13.9 gpm (52.6 lpm)
