Massey Ferguson 383

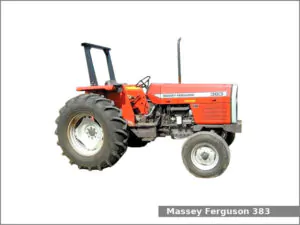

Massey Ferguson 383The Massey Ferguson 383 is a 2WD utility tractor from the 300 series. This tractor was manufactured by Massey Ferguson in Coventry, England from 1987 to 1997. The Massey Ferguson 383 is equipped with a 4.1 L (248.0 cu·in) four-cylinder diesel engine and a gear type transmission with 8 forward and 2 reverse gears.

The MF 383 utility tractor used the Perkins A2.248 engine. It is a 4.1 L, 4,064 cm2, (248.0 cu·in) four-cylinder natural aspirated diesel engine with 101.0 mm (3.98 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 82.1 PS (60.4 kW; 81.0 HP) at 2,200 rpm of output power.

The Massey Ferguson 383 is equipped with power steering, wet disc brakes, two-post ROPS, and 107.9 liters (28.5 US gal.; 23.7 Imp. gal) fuel tank.

Massey Ferguson 383 Specifications

General Specifications
Model Massey Ferguson 383
Length 3,660 mm (144.1 in)
Width 2,000 mm (78.7 in)
Height
Wheel base 2,130 mm (83.9 in)
Ground clearance 350 mm (13.8 in)
Weight 2,766 kg (6,098 lbs)
Fuel tank capacity 107.9 liters (28.5 US gal.; 23.7 Imp. gal)
Battery 12V
Cabin type Two-post ROPS
Engine
Engine model Perkins A2.248
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.1 L, 4,064 cm2, (248.0 cu·in)
Bore and stroke 101.0 mm X 127.0 mm (3.98 in X 5 in)
Horsepower 82.1 PS (60.4 kW; 81.0 HP) at 2,200 rpm
Starter Electric
Coolant capacity: 15.1 L (16 US. qt, 13.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Differental wet disc
Transmission model
Transmission type Gear type
Gears 8 forward and 2 reverse
Tires
Front tires Ag: 8.5L-15
Rear tires Ag: 18.4-30
Three-Point Hitch
Category II
Control type
Lift capacity (at ends) 1,930 kg (4,256 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 3000 psi (206.8 bar)
Valves 2
Pump flow 4.4 gpm (16.7 lpm)
