Massey Ferguson 399

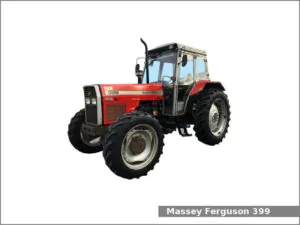

Massey Ferguson 399The Massey Ferguson 399 is a 2WD or 4WD utility tractor from the 300 series. This tractor was manufactured by Massey Ferguson in Coventry, England from 1987 to 1991. The Massey Ferguson 399 is equipped with a 5.8 L (354.0 cu·in) six-cylinder diesel engine and a synchromesh transmission with 12 forward and 4 reverse gears.

The Massey Ferguson 399 utility tractor used the Perkins A6.354 engine. It is a 5.8 L, 5,801 cm2, (354.0 cu·in) six-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 98.3 PS (72.3 kW; 97.0 HP) at 2,200 rpm of output power and 113.4 N·m (11.6 kg·m, 83.6 ft·lb) at 1,400 rpm of torque.

The MF 399 is equipped with hydrostatic power steering, differential wet disc brakes, two-post ROPS or cab (optional), and 126.0 liters (33.3 US gal.; 27.7 Imp. gal) fuel tank.

Massey Ferguson 399 Specifications

General Specifications
ModelMassey Ferguson 399
Length 2WD: 4,150 mm (163.4 in)
4WD: 4,290 mm (168.9 in)
Width2,210 mm (87 in)
Height2,610 mm (102.8 in)
Wheel base 2WD: 2,570 mm (101.2 in)
4WD: 2,630 mm (103.5 in)
Ground clearance 2WD: 400 mm (15.7 in)
4WD: 350 mm (13.8 in)
Weight
Fuel tank capacity126.0 liters (33.3 US gal.; 27.7 Imp. gal)
Battery12V
Cabin typeTwo-post ROPS (Canopy optional)
Engine
Engine modelPerkins A6.354
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement5.8 L, 5,801 cm2, (354.0 cu·in)
Bore and stroke98.0 mm X 127.0 mm (3.86 in X 5 in)
Horsepower98.3 PS (72.3 kW; 97.0 HP) at 2,200 rpm
Torque113.4 N·m (11.6 kg·m, 83.6 ft·lb) at 1,400 rpm
StarterElectric
Coolant capacity:20.1 L (21.2 US. qt, 17.7 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential wet disc
Transmission model
Transmission typeSynchromesh
Gears12 forward and 4 reverse
Speed Forward: 29.3 kmh (18.2 mph) Reverse: 15.9 kmh (9.9 mph)
Tires
Front tires Ag: 10.00-16 (2WD), 14.9-28 (4WD)
Rear tires Ag: 16.9-38
Three-Point Hitch
CategoryII
Control typePosition and draft control
Lift capacity (at 610 mm/24 in)1,970 kg (4,344 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity47.3 L (12.5 US. gal, 10.4 Imp. gal.)
Pressure3,000 psi (206.8 bar)
Valves2
Pump flow7.2 gpm (27.3 lpm)
Total flow16.8 gpm (63.6 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
