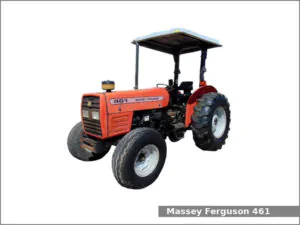

Massey Ferguson 461

Massey Ferguson 461The Massey Ferguson 461 is a 2WD or 4WD utility tractor from the 400 series. This tractor was manufactured by Massey Ferguson in Turkey from 2004 to 2005. The MF 461 is equipped with a 3.3 L (201.0 cu·in) three-cylinder diesel engine and a synchronized shuttle with dry disc clutch transmission with 8 forward and 8 reverse gears.

The Massey Ferguson 461 utility tractor used the Perkins 1103C-33T engine. It is a 3.3 L, 3,294 cm2, (201.0 cu·in) three-cylinder turbocharged diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 76 PS (55.9 kW; 75.0 HP) of output power.
The MF 461 is equipped with power steering, wet disc brakes, a flat-deck platform with two-post folding ROPS, and 48.1 liters (12.7 US gal.; 10.6 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 461 utility tractor:

  • Massey Ferguson 1040 loader
  • Massey Ferguson 1055 loader

Massey Ferguson 461 Specifications

General Specifications
Model Massey Ferguson 461
Length 3,220 mm (126.8 in)
Width 1,690 mm (66.5 in)
Height 2,340 mm (92.1 in)
Wheel base 1,940 mm (76.4 in)
Ground clearance (drawbar) 330 mm (13.0 in)
Weight (shipping) 2WD: 2,250 kg (4,960 lbs)
4WD: 2,475 kg (5,455 lbs)
Fuel tank capacity 48.1 liters (12.7 US gal.; 10.6 Imp. gal)
Battery 12V
Cabin type Flat-deck platform with two-post folding ROPS.
Engine
Engine model Perkins 1103C-33T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 76 PS (55.9 kW; 75.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Planetary
Transmission model
Transmission type Synchronized shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category II/I
Control type Position control and top-link draft sensing
Lift capacity (at ends) 1,230 kg (2,710 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with hydraulic wet disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 2
Pump flow 3-point: 4.4 gpm (16.7 lpm)
Aux: 9.0 gpm (34.1 lpm)
SCV flow 9.0 gpm (34.1 lpm)
13.4 gpm (50.7 lpm)
Steering flow 5.5 gpm (20.8 lpm)
Total flow 18.9 gpm (71.5 lpm)
