Massey Ferguson 471 (2004-2006)

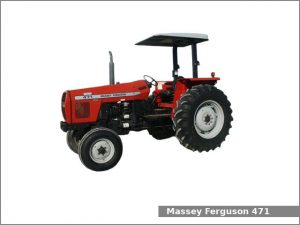

Massey Ferguson 471The Massey Ferguson 471 is a 2WD or 4WD utility tractor from the 400 series. This tractor was manufactured by Massey Ferguson in Brazil from 2002 to 2006. This second ganeration was manufactured from 2004 to 2006. The Massey Ferguson 471 is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and one of three transmissions: a gear type transmission with 8 forward and 2 reverse gears and dry disc clutch, a synchronized shuttle transmission with 8 forward and 8 reverse gears or a partially synchronized transmission with 12 forward and 4 reverse gears.

The MF 471 utility tractor used the Perkins 1104C-44 engine. It is a 4.4 L, 4,391 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 19.3:1. This engine produced 73 PS (53.7 kW; 72.0 HP) at 2,200 rpm of output power.

The Massey Ferguson 471 is equipped with power steering, independent hydraulic wet disc brakes, flat-deck platform with two-post folding ROPS or Cab (optioanl) and 65.9 liters (17.4 US gal.; 14.5 Imp. gal) fuel tank for ROPS version or 109.8 liters (29.0 US gal, 24.2 Imp. gal) for version with cab.

Following attachments are available for the MF 471 utility tractor:

  • Massey Ferguson 1040 loader
  • Massey Ferguson 1055 loader
  • Massey Ferguson 1065 loader
  • Massey Ferguson 1070 loader

Massey Ferguson 471 Specifications

General Specifications
Model Massey Ferguson 471
Length 3,930 mm (154.7 in)
Width 2,030 mm (79.9 in)
Height ROPS: 2,570 mm (101.2 in)
Cab: 2,690 mm (105.9 in)
Wheel base 2,290 mm (90.2 in)
Ground clearance (drawbar) 370 mm (14.6 in)
Weight (shipping) 2WD ROPS: 2,530 kg (5,578 lbs)
4WD ROPS: 2,860 kg (6,305 lbs)
2WD Cab: 2,990 kg (6,592 lbs)
4WD Cab: 3,410 kg (7,520 lbs)
Fuel tank capacity ROPS: 65.9 liters (17.4 US gal.; 14.5 Imp. gal)
Cab: 109.8 liters (29.0 US gal, 24.2 Imp. gal)
Battery 12V
Cabin type Flat-deck platform with two-post folding ROPS or Cab (optioanl)
Engine
Engine model Perkins 1104C-44
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,391 cm2, (268.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Compression ratio 19.3:1
Horsepower 73 PS (53.7 kW; 72.0 HP) at 2,200 rpm
Torque 398.7 N·m (40.7 kg·m, 293.8 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 8.9 L (9.4 US. qt, 7.8 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Independent hydraulic wet disc
Final drive Planetary
Transmission model
Transmission type Gear type with dry disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 11.7 kmh (7.3 mph)
Transmission model
Transmission type Synchronized shuttle
Gears 8 forward and 8 reverse
Transmission model
Transmission type Partially synchronized
Gears 12 forward and 4 reverse
Tires
Front tires Ag: 9.5L-15 F2 (2WD), 11.2-24 R1 (4WD)
Rear tires Ag: 16.9-30 R1
Three-Point Hitch
Category II
Control type Position control and top-link draft sensing
Lift capacity (at 610 mm/24 in) 1,790 kg (3,950 lbs)
PTO (Power take-off shaft)
Rear PTO type Live with dry disc clutch
Independent with hydraulic wet disc clutch (optional)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 2 or 3
Pump flow 3-point: 4.5 gpm (17.0 lpm)
Aux pump: 10.0 gpm (37.9 lpm)
SCV flow 14.5 gpm (54.9 lpm)
Steering flow 8.0 gpm (30.3 lpm)
Total flow 22.5 gpm (85.2 lpm)
