Massey Ferguson 4710

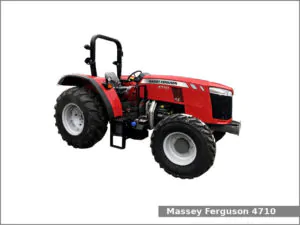

Massey Ferguson 4710The Massey Ferguson 4710 is a 2WD or 4WD utility tractor from the 4700 Global series. This tractor has been manufactured by Massey Ferguson (a part of AGCO) in Brazil and China since 2016. The Massey Ferguson 4710 is equipped with a 3.3 L (201.0 cu·in) three-cylinder diesel engine and one of two transmissions: a mechanical shuttle transmission with 12 forward and 12 reverse gears and dry disc clutch or a power shuttle transmission with 12 forward and 12 reverse gears and wet disc clutch.

The Massey Ferguson 4710 utility tractor used the AGCO Power 33AWIC engine. It is a 3.3 L, 3,294 cm2, (201.0 cu·in) three-cylinder turbocharged intercooled diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 101.5 PS (74.6 kW; 100 HP) at 2,200 rpm of output power.

The MF 4710 is equipped with power steering, wet disc brakes, two-post folding ROPS or Cab with air-conditioning (optional), and 104.8 liters (27.7 US gal.; 23.1 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 4710 utility tractor:

  • AGCO 931X loader
  • AGCO 936X loader

Massey Ferguson 4710 Specifications

General Specifications
Model Massey Ferguson 4710
Length
Width
Height
Wheel base 2,240 mm (88.2 in)
Weight 2WD ROPS: 3,395 kg (7,485 lbs)
4WD ROPS: 3,510 kg (7,740 lbs)
2WD Cab: 3,760 kg (8,295 lbs)
4WD Cab: 3,920 kg (8,645 lbs)
Fuel tank capacity 104.8 liters (27.7 US gal.; 23.1 Imp. gal)
Battery 12V, CCA 590A
Cabin type Two-post folding ROPS or Cab with air-conditioning (optional)
Engine
Engine model AGCO Power 33AWIC
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke 108.0 mm X 120.0 mm (4.25 in X 4.72 in)
Horsepower 101.5 PS (74.6 kW; 100 HP) at 2,200 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Planetary
Differential lock Electro-hydraulic rear
Transmission model
Transmission type Mechanical shuttle with dry disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 9.5L-15 (2WD), 340/85R24 (4WD)
Rear tires Ag: 420/85R34 (2WD), 420/85R34 (4WD)
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm/ 24 in) 2,200 kg (4,850 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic wet disc clutch
Rear PTO speed 540/1000, 540E/1000 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 to 3
Pump flow 17.2 gpm (65.1 lpm)
