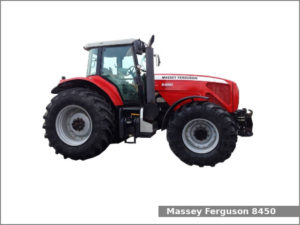

Massey Ferguson 8450

Massey Ferguson 8450The Massey Ferguson 8450 is a 4WD row-crop tractor from the 8400 series. This tractor was manufactured by the Massey Ferguson in Germany from 2004 to 2007. The Massey Ferguson 8450 is equipped with 7.4 L diesel engine and DynaStep transmission with 21 forward and 18 reverse gears or Dyna-VT transmission with infinite forward and reverse gears.

The Massey Ferguson 8450 row-crop tractor used 7.4 L, 7,358 cm2, (449 cu·in) six-cylinder turbocharged diesel engine with intercooler. It has a 108.0 mm (4.25 in) of the cylinder bore and 134.0 mm (5.28 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 218 PS (160.3 kW; 215 HP) at 2,200 rpm of maximum output power.

The Massey Ferguson 8450 is equipped with hydrostatic power steering, independent hydraulic wet disc brakes, cabin with optional pneumatic suspension and 600.0 liters (158.5 US gal.; 132 Imp. gal) fuel tank.

Massey Ferguson 8450 Specifications

General Specifications
Model Massey Ferguson 8450
Length 5,230 mm (205.9 in)
Width
Height 3,090 mm (121.7 in)
Wheel base 3,070 mm (120.9 in)
Weight 8,680 kg (19,140 lbs)
Fuel tank capacity 600.0 liters (158.5 US gal.; 132 Imp. gal)
Battery 12V
Cabin type Cab with optional pneumatic suspension
Engine
Engine model Sisu Diesel
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 7.4 L, 7,358 cm2, (449 cu·in)
Bore and stroke 108.0 mm X 134.0 mm (4.25 in X 5.28 in)
Compression ratio 17.5:1
Horsepower 218 PS (160.3 kW; 215 HP) at 2,200 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Independent hydraulic wet disc
Transmission model DynaStep
Transmission type
Gears 21 forward and 18 reverse
Transmission model Dyna-VT
Transmission type
Gears Infinite forward and reverse
Tires
Front tires Ag: 16.9R30
Rear tires Ag: 18.4R46
Three-Point Hitch
Caterogy III
Control type
Lift capacity 6,530 kg (14,400 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540/1000 or 540E/1000 rpm
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Pressure 2,900 psi (200 bar)
Valves 4 or 5
Pump flow 39.0 gpm (147.6 lpm)
