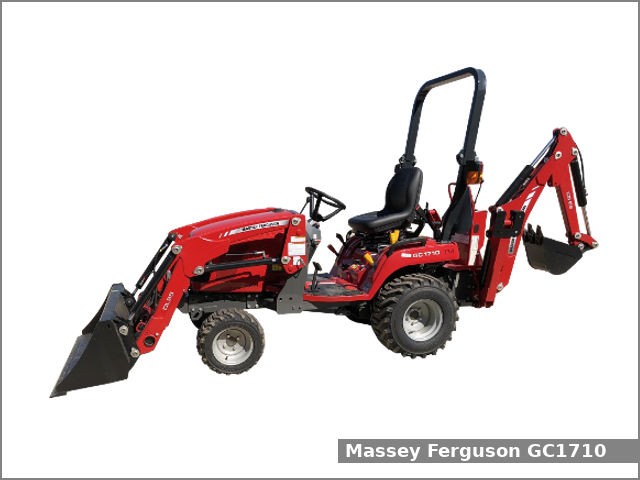

Massey Ferguson GC1710

Massey Ferguson GC1710The Massey Ferguson GC1710 is a 4WD backhoe loader tractor from the GC1700 series. This tractor has been manufactured by Iseki for Massey Ferguson since 2013. The Massey Ferguson GC1710 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Massey Ferguson GC1710 backhoe loader tractor used the Iseki engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine. This engine produced 22.8 PS (16.8 kW; 22.5 HP) at 2,600 rpm of output power.

The MF GC1710 is equipped with hydrostatic power steering, wet disc type brakes, two-post ROPS and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson GC1710 backhoe loader tractor:

  • Mid-mount Massey Ferguson 2315 54 in (1,370 mm) mower deck
  • Mid-mount Massey Ferguson 2320 54 in (1,370 mm) mower deck
  • Mid-mount Massey Ferguson 2326 60 in (1,520 mm) mower deck
  • Front-mount Massey Ferguson 2360 50 in (1,270 mm) snowblower
  • Massey Ferguson DL100 loader
  • Massey Ferguson DL95 loader
  • Massey Ferguson CB05 backhoe
  • Massey Ferguson CB65 backhoe

Massey Ferguson GC1710 Specifications

General Specifications
Model Massey Ferguson GC1710
Length 4,495 mm (177 in)
Width 1,370 mm (53.9 in)
Height 2,180 mm (85.8 in)
Wheel base 1,450 mm (57.1 in)
Ground clearance 170 mm (6.7 in)
Weight 1,210 kg (2,668 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V
Cabin type Two-post ROPS
Engine
Engine model Iseki
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,123 cm2, (68.5 cu·in)
Bore and stroke
Horsepower 22.8 PS (16.8 kW; 22.5 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 14.7 kmh (9.1 mph)
Tires
Front tires Ag: 18×8.50-10
Rear tires Ag: 26×12.00-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 540 kg (1,190 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
SCV pump flow 4.3 gpm (16.3 lpm)
Steering flow 2.0 gpm (7.6 lpm)
Total flow 6.3 gpm (23.8 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
