Massey Ferguson GC2400

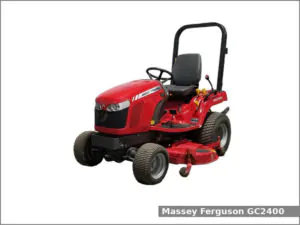

Massey Ferguson GC2400The Massey Ferguson GC2400 is a 4WD sub-compact utility tractor from the GC series. This tractor was manufactured by Iseki for Massey Ferguson from 2008 to 2012. The Massey Ferguson GC2400 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Massey Ferguson GC2400 sub-compact utility tractor used the Iseki E3112 engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 22.8 PS (16.8 kW; 22.5 HP) at 2,600 rpm of output power.

The MF GC2400 is equipped with hydrostatic power steering, wet disc type brakes, two-post fixed ROPS, and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for the MF GC2400 sub-compact utility tractor:

  • Mid-mount Massey Ferguson 2320 54 in (1,370 mm) mower deck with 3-blades
  • Mid-mount Massey Ferguson 2325 60 in (1,520 mm) mower deck with 3-blades
  • Front-mount Massey Ferguson 2335 54 in (1,370 mm) blade
  • Front-mount Massey Ferguson 2340 60 in (1,520 mm) blade
  • Front-mount Massey Ferguson 2360 50 in (1,270 mm) two-stage snowblower with hydraulic lift
  • Massey Ferguson DL100 loader

Massey Ferguson GC2400 Specifications

General Specifications
Model Massey Ferguson GC2400
Length 2,470 mm (97.2 in)
Width 1,190 mm (46.9 in)
Height 1,840 mm (72.4 in)
Wheel base 1,450 mm (57.1 in)
Ground clearance 170 mm (6.7 in)
Weight 650 kg (1,433 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V, CCA: 390A
Cabin type Two-post fixed ROPS
Engine model Iseki E3112
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,123 cm2, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.0 mm (3.07 in X 3.07 in)
Horsepower 22.8 PS (16.8 kW; 22.5 HP) at 2,600 rpm
Starter Electric
Oil capacity: 2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Coolant capacity: 4.6 L (4.9 US. qt, 4 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 14.6 kmh (9.1 mph)
Transmission oil capacity 11.0 L (2.9 US. gal, 2.4 Imp. gal.)
Front tires Ag: 18×8.50-10
Rear tires Ag: 26×12.00-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 540 kg (1,190 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 4.3 gpm (16.3 lpm)
Steering flow 2.0 gpm (7.6 lpm)
Total flow 6.3 gpm (23.8 lpm)
