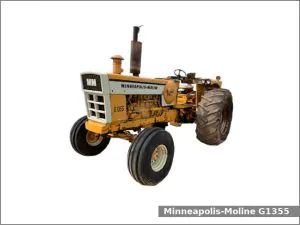

Minneapolis-Moline G1355

Minneapolis-Moline G1355The Minneapolis-Moline G1355 is a 2WD utility tractor manufactured by Minneapolis-Moline in Charles City, Iowa, USA from 1972 to 1974. The Minneapolis-Moline G1355 is equipped with a 9.6 L (585.0 cu·in) six-cylinder diesel engine and one of two transmissions: transmission with 6 forward and 2 reverse gears or a three-range power shift transmission with 18 forward and 6 reverse gears and dry disc clutch.

The Minneapolis-Moline G1355 utility tractor used the Minneapolis-Moline engine. It is a 9.6 L, 9,586 cm2, (585.0 cu·in) six-cylinder natural aspirated diesel engine with 121.0 mm (4.76 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke. The compression ratio rating is 15.3:1. This engine produced 144 PS (105.9 kW; 142.0 HP) at 2,200 rpm of PTO output power.

The MM G1355 is equipped with hydrostatic power steering, dry disc brakes, open operator station or Cab (optional) and 151.4 liters (40 US gal.; 33.3 Imp. gal) fuel tank.

Minneapolis-Moline G1355 Specifications

General Specifications
Model Minneapolis-Moline G1355
Length
Width
Height
Wheel base 2,820 mm (111 in)
Weight (operating) 7,760 kg (17,108 lbs)
Fuel tank capacity 151.4 liters (40 US gal.; 33.3 Imp. gal)
Battery
Cabin type Open operator station or Cab (optional)
Engine
Engine model Minneapolis-Moline
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 9.6 L, 9,586 cm2, (585.0 cu·in)
Bore and stroke 121.0 mm X 140.0 mm (4.76 in X 5.51 in)
Compression ratio 15.3:1
Horsepower 144 PS (105.9 kW; 142 HP) at 2,200 rpm
Starter Electric
Coolant capacity: 31.2 L (33 US. qt, 27.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Dry disc
Transmission model
Transmission type
Gears 6 forward and 2 reverse
Transmission model Hydraul-Shift
Transmission type Three-range power shift with dry disc clutch
Gears 18 forward and 6 reverse
Tires
Front tires Ag: 11.00-16
Rear tires Ag: 18.4-38
Three-Point Hitch
Category III/II
Control type
Lift capacity 2,720 kg (6,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed center
Pump flow 20.0 gpm (75.7 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
