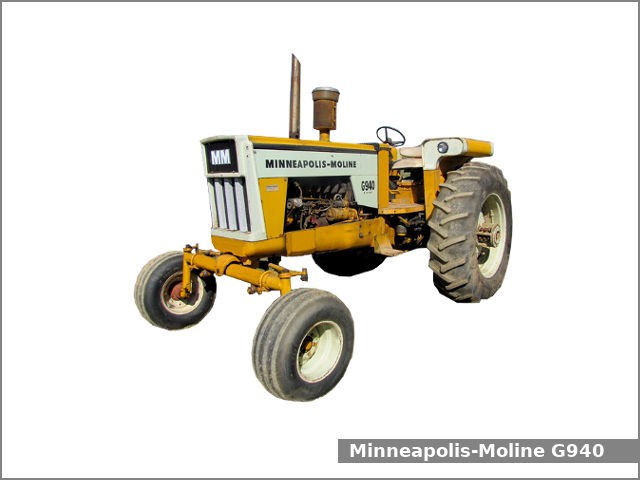

Minneapolis-Moline G940 utility tractor: review and specs

The Minneapolis-Moline G940 is a 2WD/4WD tractor manufactured by the Minneapolis-Moline from 1971 to 1973. The Minneapolis-Moline model G940 is the same as the Oliver 1855 row-crop tractor. The Minneapolis-Moline G940 is equipped with 5.1 L, diesel or gasoline engine and gear transmission with 6 forward and 2 reverse gears or partial power shift transmission with 18 forward and 6 reverse gears.

The Minneapolis-Moline G940 tractor used 5.1 L, 5,080 cm², (310 cu·in) six-cylinders turbocharged diesel or gasoline engine with 98.0 mm (3.86 in) of cylinder bore and 111.0 mm (4.37 in) of piston stroke. The Oliver-Waukesha diesel engine produced 99.4 PS (73.1 kW; 98 HP) at 2,400 rpm of maximum output power, gasoline engine produced 93.3 PS (68.6 kW; 92 HP) at 2,400 rpm.

The Minneapolis-Moline G940 is equipped with hydrostatic power steering, differential hydraulic disc brakes, open operator station. (two-post ROPS or cab was available as an option) and 132 liters (34.9 US gal.; 29 Imp. gal) fuel tank.

Minneapolis-Moline G940 Specifications

General Specifications
Model	Minneapolis-Moline G940
Length	–
Width	–
Height	–
Wheel base	2,610 mm (102.8 in)
Weight	5,057 kg (11,149 lbs)
Fuel tank capacity	132 liters (34.9 US gal.; 29 Imp. gal)
Battery	Two 6V
Cabin type	Open operator station. Two-post ROPS or cab (optional)
Engine
Engine model	Oliver-Waukesha
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	6
Fuel type	Diesel
Displacement	5.1 L, 5,080 cm², (310 cu·in)
Bore and stroke	98.0 mm X 111.0 mm (3.86 in X 4.37 in)
Compression ratio	16.0:1
Horsepower	99.4 PS (73.1 kW; 98 HP) at 2,400 rpm
Starter	Electric
Coolant capacity:	18.9 L (19.97 US. qt, 16.63 Imp. qt.)
Engine
Engine model	Oliver-Waukesha
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	6
Fuel type	Gasoline
Displacement	5.1 L, 5,080 cm², (310 cu·in)
Bore and stroke	98.0 mm X 111.0 mm (3.86 in X 4.37 in)
Compression ratio	8.5:1
Horsepower	93.3 PS (68.6 kW; 92 HP) at 2,400 rpm
Starter	Electric

Transmission and chassis
Chassis	4×2 2WD or 4×4 MFWD 4WD (optio
Steering type	Hydrostatic power
Brakes	Differential hydraulic disc
Transmission model	–
Transmission type	–
Gears	6 forward and 2 reverse
Transmission model	Hydraul-Shift
Transmission type	Partial power shift
Gears	18 forward and 6 reverse
Tires
Front tires	Ag: 11L-15
Rear tires	Ag: 23.1-34

Three-Point Hitch
Caterogy	I/II or II/III (optional)
Control type	–
Lift capacity	Cat I/II: 1,815 kg (4,000 lbs) Cat II/III: 2,720 kg (6,000 lbs)
PTO (Power take-off shaft)
Rear PTO type	Independent
Rear PTO spped	540; 540/1000; 1000 rpm
Hydraulic system
Hydraulic type	Closed center
Pump flow	20.0 gpm (75.7 lpm)
