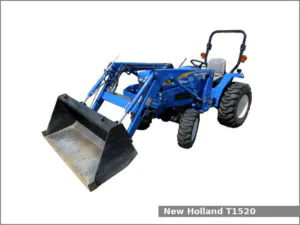

The New Holland T1520 is a 4WD compact utility tractor from the T1500 series. This tractor was manufactured by New Holland from 2008 to 2013. The New Holland T1520 is equipped with a 1.7 L (101.4 cu·in) three-cylinder diesel engine and one of two transmissions: a hydrostatic transmission with infinite (3-range) forward and reverse gears or an unsynchronized gear transmission with 9 forward and 3 reverse gears.
The New Holland T1520 compact utility tractor used the Shibaura N843L engine. It is a 1.7 L, 1,662 cm2, (101.4 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 100.0 mm (3.94 in) of the piston stroke. The compression ratio rating is 22.5:1. This engine produced 35.5 PS (26.1 kW; 35.0 HP) at 2,600 rpm of output power.
The New Holland T1520 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS, and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.
New Holland T1520 Specifications
| General Specifications | |
| Model | New Holland T1520 |
| Length | 2,820 mm (111 in) |
| Width | 1,570 mm (61.8 in) |
| Height | 2,090 mm (82.3 in) |
| Wheel base | 1,600 mm (63 in) |
| Weight | 1,090 kg (2,403 lbs) |
| Fuel tank capacity | 27.0 liters (7.1 US gal.; 5.9 Imp. gal) |
| Battery | 12V, CCA 420A |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Shibaura N843L |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.7 L, 1,662 cm2, (101.4 cu·in) |
| Bore and stroke | 84.0 mm X 100.0 mm (3.31 in X 3.94 in) |
| Compression ratio | 22.5:1 |
| Horsepower | 35.5 PS (26.1 kW; 35.0 HP) at 2,600 rpm |
| Starter | Electric |
| Oil type | API: CD |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Wet disc |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Transmission model | |
| Transmission type | Unsynchronized gear |
| Gears | 9 forward and 3 reverse |
| Tires | |
| Front tires | Ag: 7.4×14Lawn/turf: 24×8.50-14 |
| Rear tires | Ag: 11.2×24Lawn/turf: 13.6×16 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at 610 mm / 24 in) | 740 kg (1,630 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Live |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pump flow | 6.2 gpm (23.5 lpm) |
| Steering flow | 3.8 gpm (14.4 lpm) |
| Total flow | 10.0 gpm (37.9 lpm) |
