New Holland TN70

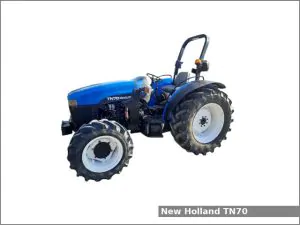

New Holland TN70The New Holland TN70 is a 2WD or 4WD utility tractor from the TN series. This tractor was manufactured by New Holland in Jesi, Italy from 2000 to 2003. The New Holland TN70 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of four transmissions: a gear type transmission with 8 forward and 8 reverse gears, a partially synchronized transmission with 8 forward and 8 reverse gears, a partially synchronized transmission with 16 forward and 16 reverse gears or a two-speed power shift with 32 forward and 16 reverse gears.

The New Holland TN70 utility tractor used the Iveco 8035 engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 70 PS (51.5 kW; 69.0 HP) at 2,300 rpm of output power and 264.4 N·m (27 kg·m, 194.9 ft·lb) at 1,400 rpm of torque.

The NH TN70 is equipped with power steering, differential hydraulic wet disc brakes, two-post folding ROPS or cab (optional) and 65.5 liters (17.3 US gal.; 14.4 Imp. gal) fuel tank.

Following attachments are available for the NH TN70 utility tractor:

  • New Holland 32LA loader
  • New Holland 32LA MSL loader
  • New Holland 33LA loader
  • New Holland 33LA MSL loader

The tractor variants:

  • TN70: ROPS
  • TN70D: cab
  • TN70S: SuperSteer
  • TN70F: orchard

New Holland TN70 Specifications

General Specifications
Model New Holland TN70
Length 3,930 mm (154.7 in)
Width 1,700 mm (66.9 in)
Height ROPS: 2,410 mm (94.9 in)
Cab: 2,300 mm (90.6 in)
Wheelbase 2WD ROPS: 2,070 mm (81.5 in)
2WD Cab: 2,130 mm (83.9 in)
4WD ROPS: 2,000 mm (78.9 in)
4WD Cab: 2,060 mm (81.3 in)
4WD SuperSteer: 2,370 mm (93.5 in)
Weight (shipping) 2WD ROPS: 2,250 kg (4,960 lbs)
4WD ROPS: 2,340 kg (5,160 lbs)
2WD Cab: 2,292 kg (5,055 lbs)
4WD Cab: 2,565 kg (5,655 lbs)
SuperSteer ROPS: 2,430 kg (5,630 lbs)
SuperSteer Cab: 2,630 kg (5,800 lbs)
Fuel tank capacity 65.5 liters (17.3 US gal.; 14.4 Imp. gal)
Battery 12V, CCA 730A
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model Iveco 8035
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio 18.0:1
Horsepower 70 PS (51.5 kW; 69.0 HP) at 2,300 rpm
Torque 264.4 N·m (27 kg·m, 194.9 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Final drive Planetary
Transmission model
Transmission type Gear type with dry disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 30.3 kmh (18.8 mph)
Transmission model Synchro Command
Transmission type Partially synchronized with dry disc clutch (mechanical shuttle) or wet disc clutch (power shuttle)
Gears 8 forward and 8 reverse
Speed Forward: 30.3 kmh (18.8 mph)
Transmission model Synchro Command Plus
Transmission type Partially synchronized with dry disc clutch (mechanical shuttle) or wet disc clutch (power shuttle)
Gears 16 forward and 16 reverse
Speed Forward: 27.7 kmh (17.2 mph)
Transmission model Dual Command
Transmission type Two-speed power shift
Gears 32 forward and 16 reverse
Speed Forward: 27.7 kmh (17.2 mph)
Tires
Front tires Ag: 7.50-16 (2WD), 8.3-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm/24 in) 1,800 kg (3,960 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with dry disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2755 psi (189.9 bar)
Valves 2 or 3
Pump flow 12.4 gpm (46.9 lpm)
16.9 gpm (64 lpm)
Steering flow 7.2 gpm (27.3 lpm)
9.2 gpm (34.8 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
