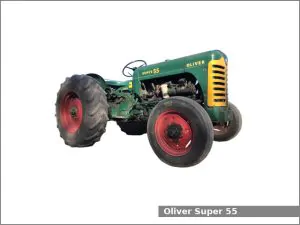

The Oliver Super 55 is a 2WD utility tractor from the series. This tractor was manufactured by Oliver in from 1954 to 1958.
The Oliver Super 55 is equipped with one of two engines: a 2.4 L (144.0 cu·in) four-cylinder gasoline engine or a 2.4 L (144.0 cu·in) four-cylinder diesel engine and a unsychronized gear transmission with 6 forward and 2 reverse gears and dry plate clutch.
The Oliver Super 55 used mechanical disc brakes, an open operator station and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.
The tractor could be equipped with the following engines:
- Oliver. It is a 2.4 L, 2,360 cm2, (144.0 cu·in) four-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. The compression ratio rating is 7.0:1.
- Oliver. It is a 2.4 L, 2,360 cm2, (144.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 95.0 mm (3.74 in). The compression ratio rating is 15.75:1.
Oliver Super 55 Specifications
| General Specifications | |
| Model | Oliver Super 55 |
| Length | 3,040 mm (119.7 in) |
| Width | – |
| Height | 1,800 mm (70.9 in) |
| Wheel base | – |
| Weight (operating) | 1,540 kg (3,395 lbs) |
| Fuel tank capacity | 49.2 liters (13 US gal.; 10.8 Imp. gal) |
| Battery | – |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Oliver |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 2.4 L, 2,360 cm2, (144.0 cu·in) |
| Bore and stroke | 89.0 mm X 95.0 mm (3.5 in X 3.74 in) |
| Compression ratio | 7.0:1 |
| Horsepower | – |
| Starter | Electric |
| Coolant capacity: | 13.2 L (13.9 US. qt, 11.6 Imp. qt.) |
| Engine | |
| Engine model | Oliver |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.4 L, 2,360 cm2, (144.0 cu·in) |
| Bore and stroke | 89.0 mm X 95.0 mm (3.5 in X 3.74 in) |
| Compression ratio | 15.75:1 |
| Horsepower | – |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | – |
| Brakes | Mechanical disc |
| Transmission model | – |
| Transmission type | Unsychronized gear with dry plate clutch |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 21.2 kmh (13.2 mph) Reverse: 6.3 kmh (3.9 mph) |
| Tires | |
| Front tires | Ag: 6.00-16 |
| Rear tires | Ag: 11-28 |
| PTO (Power take-off shaft) | |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
