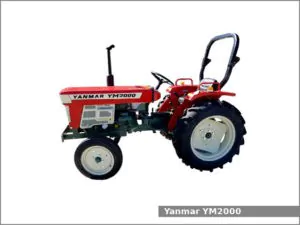

The Yanmar YM2000 is a 2WD (YM2000) or 4WD (YM2000D) compact utility tractor manufactured by Yanmar from 1975 to 1977. The Yanmar YM2000 is equipped with a 1.1 L (70.0 cu·in) two-cylinder diesel engine and a gear-type transmission with dry disc clutch and 8 forward and 2 reverse gears.
The Yanmar YM2000 compact utility tractor used the Yanmar 2TR20 engine. It is a 1.1 L, 1,147 cm2, (70.0 cu·in) two-cylinder natural aspirated diesel engine with 90.0 mm (3.54 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 2,400 rpm of output power.
The Yanmar YM2000 is equipped with manual steering, mechanical drum brakes, open operator station, and 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank.
Yanmar YM2000 Specifications
General Specifications | |
Model | Yanmar YM2000 |
Length | 2,520 mm (99.2 in) |
Width | 1,140 mm (44.9 in) |
Height | 1,770 mm (69.7 in) |
Wheel base | 1,490 mm (58.7 in) |
Ground clearance | 350 mm (13.8 in) |
Weight |
2WD: 755 kg (1,664 lbs) 4WD: 880 kg (1,940 lbs) |
Fuel tank capacity | 22.0 liters (5.8 US gal.; 4.8 Imp. gal) |
Battery | 12V |
Cabin type | Open operator station |
Engine | |
Engine model | Yanmar 2TR20 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 2 |
Fuel type | Diesel |
Displacement | 1.1 L, 1,147 cm2, (70.0 cu·in) |
Bore and stroke | 90.0 mm X 90.0 mm (3.54 in X 3.54 in) |
Horsepower | 20.3 PS (14.9 kW; 20.0 HP) at 2,400 rpm |
Starter | Electric |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Manual |
Brakes | Mechanical drum |
Differential lock | Mechanical rear |
Transmission model | – |
Transmission type | Gear type with dry disc clutch |
Gears | 8 forward and 2 reverse |
Speed | Forward: 15.0 kmh (9.3 mph) |
Tires | |
Front tires | Ag: 4.00×15 |
Rear tires | Ag: 9×24 |
Three-Point Hitch | |
Caterogy | I |
Control type | – |
Lift capacity (at ends) | 650 kg (1,435 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | – |
Rear PTO speed | 540/750/1,000 rpm |
