CaseIH 7120

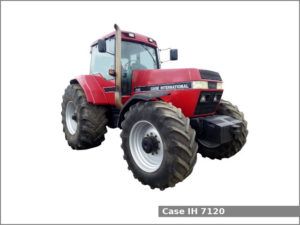

CaseIH 7120The CaseIH 7120 is a 2WD or 4WD row-crop tractor from the Magnum series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1987 to 1993. The CaseIH 7120 is equipped with a 8.3 L (504.5 cu·in) six-cylinder diesel engine and one of three transmissions: a full power shift transmission with 18 forward and 2 reverse gears, a powershift transmission with creeper and 24 forward and 3 reverse gears or a full power shift transmission with 18 forward and 4 reverse gears.

The CaseIH 7120 row-crop tractor used the CDC engine. It is a 8.3 L, 8,267 cm2, (504.5 cu·in) six-cylinder turbocharged diesel engine with 114.0 mm (4.49 in) of the cylinder bore and 135.0 mm (5.31 in) of the piston stroke. The compression ratio rating is 17.3:1. This engine produced 152.2 PS (111.9 kW; 150.0 HP) at 2,200 rpm of PTO output power.

The Case-IH 7120 Magnum is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, Silent Guardian II Cab with air-conditioning (standard), and 295.2 liters (78 US gal.; 64.9 Imp. gal) fuel tank.

CaseIH 7120 Specifications

General Specifications
ModelCaseIH 7120
Length 2WD: 4,850 mm (190.9 in)
4WD: 5,020 mm (197.6 in)
Width
Height (cab) 2WD: 3,000 mm (118.1 in)
4WD: 2,980 mm (117.3 in)
Wheel base3,000 mm (118.1 in)
Ground clearance 2WD: 560 mm (22 in)
4WD: 420 mm (16.5 in)
Weight (shipping) 2WD: 7,220 kg (15,917 lbs)
4WD: 7,810 kg (17,218 lbs)
Fuel tank capacity 295.2 liters (78 US gal.; 64.9 Imp. gal)
Optional: 359.6 liters (95 US gal, 79.1 Imp. gal)
BatteryTwo 12V, CCA 950A
Cabin typeSilent Guardian II Cab with air-conditioning (standard)
Engine
Engine modelCDC
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement8.3 L, 8,267 cm2, (504.5 cu·in)
Bore and stroke114.0 mm X 135.0 mm (4.49 in X 5.31 in)
Compression ratio17.3:1
Horsepower152.2 PS (111.9 kW; 150.1 HP) at 2,200 rpm
StarterElectric
Oil capacity:19.9 L (21 US. qt, 17.5 Imp. qt.)
Coolant capacity:28.4 L (30 US. qt, 25 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Transmission modelCaseIH
Transmission typeFull power shift with hydraulic wet disc clutch
Gears18 forward and 2 reverse
Speed Forward: 29.4 kmh (18.3 mph) Reverse: 4.7 (2.9 mph)
Transmission modelCaseIH
Transmission typePowershift with creeper and hydraulic wet disc clutch
Gears24 forward and 3 reverse
Transmission modelCaseIH
Transmission typeFull power shift with hydraulic wet disc clutch
Gears18 forward and 4 reverse
Tires
Front tires Ag: 11.00-16 (2WD), 13.6R28 (4WD)
Rear tires Ag: 18.4R38
Three-Point Hitch
CategoryIII/IIIN
Control typeElectronic lower link
Lift capacity (at 610 mm/24 in)3,490 kg (7,695 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with wet disc clutch
Rear PTO speed1000 or 540/1000 rpm
Hydraulic system
Hydraulic typeClosed center pressure flow compensated (PFC)
Hydraulic capacity191.1 L (50.5 US. gal, 42 Imp. gal.)
Pressure2600 psi (179.3 bar)
Valves2 to 4
Pump flow22.0 gpm (83.3 lpm)
Total flow29.0 gpm (109.8 lpm)
