CaseIH 7230

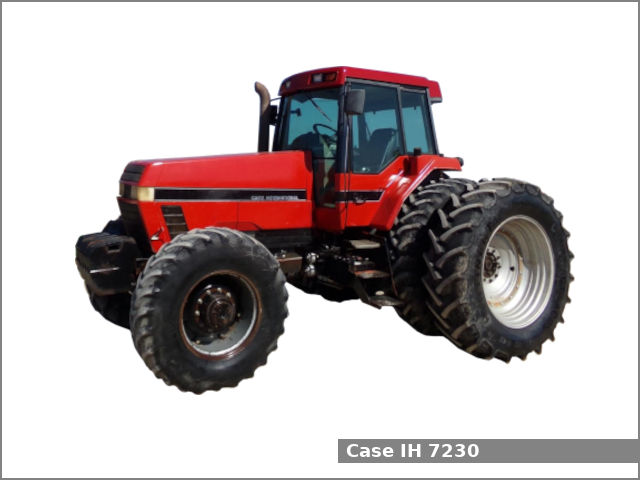

CaseIH 7230The CaseIH 7230 is a 2WD/4WD row-crop tractor from the Magnum 7200 series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1994 to 1996. The CaseIH 7230 is equipped with a 8.3 L (504.5 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 4 reverse gears (24 forward and 6 reverse with creeper).

The CaseIH 7230 row-crop tractor used the CDC engine. It is a 8.3 L, 8,267 cm2, (504.5 cu·in) six-cylinder turbocharged diesel engine with 114.0 mm (4.49 in) of the cylinder bore and 135.0 mm (5.31 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 172.4 PS (126.8 kW; 170.0 HP) at 2,200 rpm of PTO output power.

The Case International 7230 is equipped with power steering, differential hydraulic wet disc brakes, cab (standard) with air-conditioning and 359.6 liters (95.0 US gal.; 79.1 Imp. gal) fuel tank.

CaseIH 7230 Specifications

General Specifications
ModelCaseIH 7230
Length
Width
Height
Wheel base3,000 mm (118.1 in)
Ground clearance (front axle) 2WD: 570 mm (22.4 in)
4WD: 440 mm (17.3 in)
Weight (shipping) 2WD: 7,145 kg (15,752 lbs)
4WD: 7,598 kg (16,751 lbs)
Fuel tank capacity359.6 liters (95.0 US gal.; 79.1 Imp. gal)
BatteryTwo 12V, CCA 950A
Cabin typeCab (standard) with air-conditioning
Engine
Engine modelCDC
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement8.3 L, 8,267 cm2, (504.5 cu·in)
Bore and stroke114.0 mm X 135.0 mm (4.49 in X 5.31 in)
Compression ratio16.5:1
Horsepower172.4 PS (126.8 kW; 170.0 HP) at 2,200 rpm
StarterElectric
Oil capacity:20.8 L (22 US. qt, 18.3 Imp. qt.)
Coolant capacity:29.3 L (31 US. qt, 25.8 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesDifferential hydraulic wet disc
Differential lockElectric rear
Transmission model
Transmission typeFull power shift with hydraulic wet disc clutch
Gears18 forward and 4 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 11.4 kmh (7.1 mph)
Tires
Front tires Ag: 14L-16.1
Rear tires Ag: 20.8R-38
Three-Point Hitch
CategoryIII/IIIN
Control typeElectronic lower-link draft sensing
Lift capacity4,930 kg (10,870 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic wet disc clutch
Rear PTO speed1000 (1.75) or 540/1000 (dual-shaft 1.375)
Hydraulic system
Hydraulic typeClosed center pressure flow compensated (PFC)
Hydraulic capacity172.2 L (45.5 US. gal, 37.9 Imp. gal.)
Pressure2300 psi (158.6 bar)
Valves2 to 4
SCV flow22.0 gpm (83.3 lpm)
Total flow29.0 gpm (109.8 lpm)
