CaseIH 7130

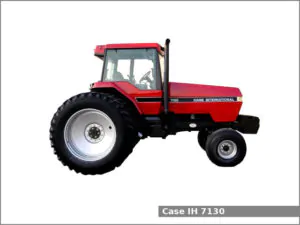

CaseIH 7130The CaseIH 7130 is a 2WD or 4WD row-crop tractor from the Magnum series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1987 to 1993. The CaseIH 7130 is equipped with an 8.3 L (504.5 cu·in) six-cylinder diesel engine and one of three transmissions: a full power shift transmission with 18 forward and 2 reverse gears, a powershift transmission with creeper and 24 forward and 3 reverse gears or a full power transmission with 18 forward and 4 reverse gears.

The Case-IH 7130 Magnum row-crop tractor used the CDC engine. It is a 8.3 L, 8,267 cm2, (504.5 cu·in) six-cylinder turbocharged diesel engine with 114.0 mm (4.49 in) of the cylinder bore and 135.0 mm (5.31 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 172.4 PS (126.8 kW; 170.0 HP) at 2,200 rpm of PTO output power.

The CaseIH 7130 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, Silent Guardian II Cab with air-conditioning (standard), and 359.6 liters (95 US gal.; 79.1 Imp. gal) fuel tank.

CaseIH 7130 Specifications

General Specifications
Model CaseIH 7130
Length 2WD: 4,860 mm (191.3 in)
4WD: 5,040 mm (198.4 in)
Width
Height (cab) 2WD: 3,030 mm (119.3 in)
4WD: 3,000 mm (118.1 in)
Wheel base 3,000 mm (118.1 in)
Ground clearance 2WD: 570 mm (22.4 in)
4WD: 440 mm (17.3 in)
Weight
Fuel tank capacity 359.6 liters (95 US gal.; 79.1 Imp. gal)
Battery Two 12V, CCA 950A
Cabin type Silent Guardian II Cab with air-conditioning (standard)
Engine
Engine model CDC
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.3 L, 8,267 cm2, (504.5 cu·in)
Bore and stroke 114.0 mm X 135.0 mm (4.49 in X 5.31 in)
Compression ratio 16.5:1
Horsepower 172.4 PS (126.8 kW; 170.0 HP) at 2,200 rpm
Starter Electric
Oil capacity: 19.9 L (21 US. qt, 17.5 Imp. qt.)
Coolant capacity: 28.4 L (30 US. qt, 25 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model CaseIH
Transmission type Full power shift with hydraulic wet disc clutch
Gears 18 forward and 2 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 4.8 (3 mph)
Transmission model CaseIH
Transmission type Powershift with creeper and hydraulic wet disc clutch
Gears 24 forward and 3 reverse
Transmission model CaseIH
Transmission type Full power shift with hydraulic wet disc clutch
Gears 18 forward and 4 reverse
Tires
Front tires Ag: 14L-16.1 (2WD), 14.9R28 (4WD)
Rear tires Ag: 18.4R42
Three-Point Hitch
Category III/IIIN
Control type Electronic lower link
Lift capacity (at 610 mm/24 in) 4,220 kg (9,305 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with wet disc clutch
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Hydraulic capacity 191.1 L (50.5 US. gal, 42 Imp. gal.)
Pressure 2600 psi (179.3 bar)
Valves 2 to 4
Pump flow 22.0 gpm (83.3 lpm)
Total flow 29.0 gpm (109.8 lpm)
