CaseIH JX90

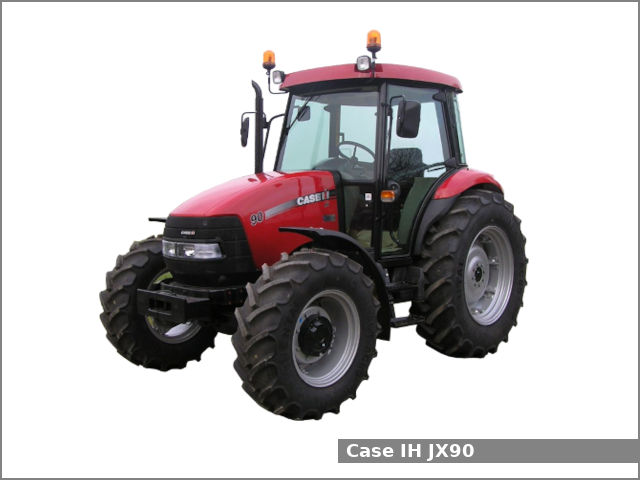

CaseIH JX90The CaseIH JX90 is a 2WD/4WD utility tractor from the JX series. This tractor was manufactured by Turk Tractor for distributor CaseIH in Ankara, Turkey from 2007 to 2008. The CaseIH JX90 is equipped with a 3.9 L (238.5 cu·in) four-cylinder diesel engine and a mechanical shuttle transmission with 12 forward and 12 reverse gears (20 forward and 12 reverse with creeper).

The CaseIH JX90 utility tractor used the Iveco 8045.25 engine. It is a 3.9 L, 3,908 cm2, (238.5 cu·in) four-cylinder turbocharged intercooled diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 83.1 PS (61.1 kW; 81.9 HP) at 2,500 rpm of output power.

The Case-IH JX90 is equipped with hydrostatic power steering, hydraulic wet disc (usa) or mechanical wet disc brakes, two-post folding ROPS or cab (optional) and 90.1 liters (23.8 US gal.; 19.8 Imp. gal) fuel tank.

CaseIH JX90 Specifications

General Specifications
Model CaseIH JX90
Length 2WD: 4,030 mm (158.7 in)
4WD: 3,970 mm (156.3 in)
Width 1,800 mm (70.9 in)
Height ROPS: 2,560 mm (100.8 in)
Cab: 2,610 mm (102.8 in)
Wheel base
Fuel tank capacity 90.1 liters (23.8 US gal.; 19.8 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab (optional)
Engine model Iveco 8045.25
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,908 cm2, (238.5 cu·in)
Bore and stroke 104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio 16.5:1
Horsepower 83.1 PS (61.1 kW; 81.9 HP) at 2,500 rpm
Torque 320.0 N·m (32.6 kg·m, 235.8 ft·lb) at 1,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc (USA) or mechanical wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Mechanical shuttle
Gears 12 forward and 12 reverse
Front tires Ag:
Rear tires Ag:
Three-Point Hitch
Category II/I
Control type Mechanical draft sensing
Lift capacity (at 610 m/24 in) 2,280 kg (5,025 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical dry disc clutch
Rear PTO speed 540, 540/540E, 540/1000
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 2755 L (727.8 US. gal, 606 Imp. gal.)
Pump flow 10.6 gpm (40.1 lpm)
Optional (standard in USA): 13.6 gpm (51.5 lpm)
Steering flow 8.1 gpm (30.7 lpm)
Total flow 21.7 gpm (82.1 lpm)
