CaseIH Magnum 380

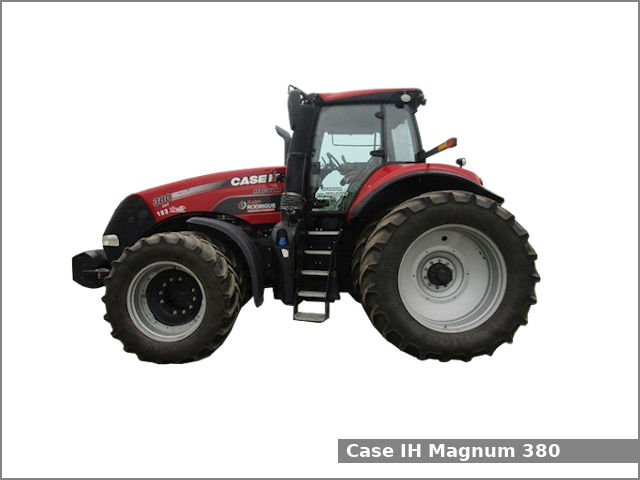

CaseIH Magnum 380The CaseIH Magnum 380 is a 4WD row-crop tractor from the Magnum series. This tractor has been manufactured by CaseIH in Racine, Wisconsin, USA from 2014. The CaseIH Magnum 380 is equipped with a 8.7 L (531.0 cu·in) six-cylinder diesel engine and a continuously variable transmission (CVT) with infinite (2-range) forward and reverse gears.

The CaseIH Magnum 380 row-crop tractor used the FPT engine. It is a 8.7 L, 8,702 cm2, (531.0 cu·in) six-cylinder wastegate turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 135.0 mm (5.31 in) of the piston stroke. This engine produced 420.9 PS (309.5 kW; 415.0 HP) at 2,000 rpm of output power.

The CaseIH Magnum 380 is equipped with power steering, wet disc brakes, cab (standard) with air-conditioning, and 617.0 liters (163 US gal.; 135.7 Imp. gal) fuel tank.

CaseIH Magnum 380 Specifications

General Specifications
Model CaseIH Magnum 380
Length 6,270 mm (246.8 in)
Width 3,040 mm (119.7 in)
Height (cab) 3,340 mm (131.5 in)
Wheel base 3,140 mm (123.6 in)
Weight 14,600 kg (32,187 lbs)
Fuel tank capacity 617.0 liters (163 US gal.; 135.7 Imp. gal)
Exhaust fluid (DEF) 98.4 liters (26 US gal.; 21.6 Imp. gal)
Battery Two 12V
Cabin type Cab standard with air-conditioning. AFS ready
Engine
Engine model FPT
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.7 L, 8,702 cm2, (531.0 cu·in)
Bore and stroke 117.0 mm X 135.0 mm (4.61 in X 5.31 in)
Horsepower 420.9 PS (309.5 kW; 415.0 HP) at 2,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Inboard planetary
Transmission model
Transmission type Continuously variable transmission (CVT)
Gears Infinite (2-range) forward and reverse
Tires
Front tires Ag: 420/8R34
Rear tires Ag: 480/80R50
Three-Point Hitch
Category III/IVN
Control type Electronic lower link draft sensing
Lift capacity (at 610 mm/ 24 in) 9,025 kg (19,900 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000, 540/1000 rpm
Hydraulic system
Hydraulic type Variable displacement pressure-flow compensating (PFC)
Valves 4 to 6
Pump flow Standard: 44.0 gpm (166.6 lpm)
Optional: 59.0 gpm (223.3 lpm)
Optional: 75.0 gpm (283.9 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
