Caterpillar 416C

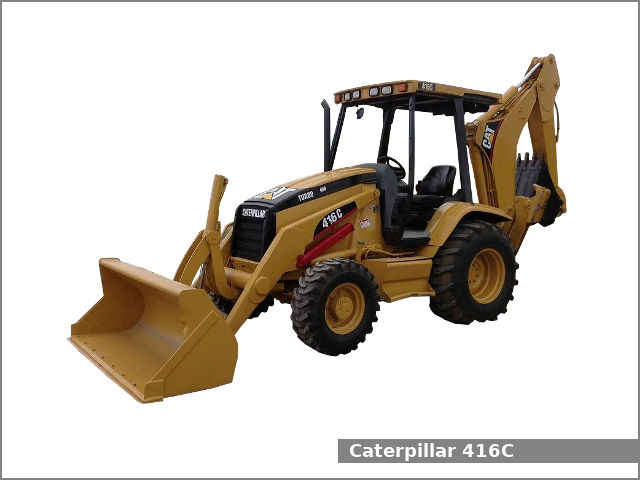

Caterpillar 416CThe Caterpillar 416C is a 2WD or 4WD backhoe loader tractor manufactured by Caterpillar from 1996 to 2001.

The Caterpillar 416C backhoe loader tractor used the Caterpillar 3054 engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 76 PS (55.9 kW; 75.0 HP) of output power.

The Cat 416C is equipped with hydrostatic power steering, multiple discs brakes, four-post ROPS, and 128.0 liters (33.8 US gal.; 28.2 Imp. gal) fuel tank.

Caterpillar 416C Specifications

General Specifications
ModelCaterpillar 416C
Length6,970 mm (274.4 in)
Width2,350 mm (92.5 in)
Height3,580 mm (140.9 in)
Wheel base2,100 mm (82.7 in)
Ground clearance290 mm (11.4 in)
Weight6,335 kg (13,966 lbs)
Fuel tank capacity128.0 liters (33.8 US gal.; 28.2 Imp. gal)
Cabin typeFour-post ROPS
Engine modelCaterpillar 3054
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower76 PS (55.9 kW; 75.0 HP)
Oil capacity:7.3 L (7.7 US. qt, 6.4 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesMultiple discs
Transmission model
Transmission type
Speed Forward: 32.8 kmh (20.4 mph) Reverse: 32.8 (20.4 mph)
Front tires11Lx16 (2WD), 12.5/80-18 (4WD)
Rear tires16.9×24
Hydraulic system
Hydraulic type
Hydraulic capacity79.0 liters (20.9 US gal, 17.4 Imp. gal)
Total flow43.1 gpm (163.2 lpm)
