Cub Cadet 5234D

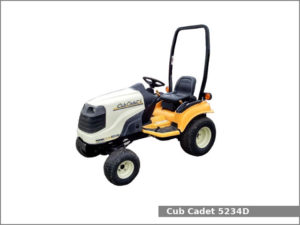

Cub Cadet 5234DThe Cub Cadet 5234D is a 4WD compact utility tractor from the 5000 series. This tractor was manufactured by Cub Cadet from 2004 to 2008. The Cub Cadet 5234D is equipped with a 0.8 L (51.8 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 5234D compact utility tractor used the Daihatsu engine. It is a 0.8 L, 849 cm2, (51.8 cu·in) three-cylinder natural aspirated diesel engine with 68.0 mm (2.68 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Cub Cadet 5234D is equipped with hydrostatic power steering, external dual disc brakes, two-post foldable ROPS, and 21.2 liters (5.6 US gal.; 4.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 5234D compact utility tractor:

  • Mid-mount Cub Cadet 1,270 mm (50 in) mower deck
  • Mid-mount Cub Cadet 1,520 mm (60 in) mower deck
  • Front-mount Cub Cadet 1,520 mm (60 in) blade
  • Front-mount Cub Cadet 1,210 mm (48 in) snowblower
  • Front-mount Cub Cadet 812 loader

Cub Cadet 5234D Specifications

General Specifications
ModelCub Cadet 5234D
Length2,150 mm (84.6 in)
With hitch: 2,610 mm (102.8 in)
Width1,140 mm (44.9 in)
Height (ROPS)2,080 mm (81.9 in)
Wheel base
Ground clearance1,390 mm (54.7 in)
Weight615 kg (1,356 lbs)
Fuel tank capacity21.2 liters (5.6 US gal.; 4.7 Imp. gal)
Battery12V, CCA 500A
Cabin typeTwo-post foldable ROPS
Engine modelDaihatsu
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement0.8 L, 849 cm2, (51.8 cu·in)
Bore and stroke68.0 mm X 78.0 mm (2.68 in X 3.07 in)
Horsepower23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
Oil capacity:3.3 L (3.5 US. qt, 2.9 Imp. qt.)
Coolant capacity:5.0 L (5.3 US. qt, 4.4 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesExternal dual disc
Differential lockMechanical rear
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 kmh (4 mph)
Transmission oil capacity18.9 L (5 US. gal, 4.2 Imp. gal.)
Front tires Ag: 18×9.5-8
Lawn/turf: 18×8.5-8
Rear tires Ag: 26x12x12
Lawn/turf: 26x12x12
Three-Point Hitch
Control type
Lift capacity (at ends)465 kg (1,025 lbs)
PTO (Power take-off shaft)
Middle PTO typeIndependent
Middle PTO speed2,000 rpm
Rear PTO typeIndependent with electric clutch
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity18.9 L (5 US. gal, 4.2 Imp. gal.)
Pressure1500 psi (103.4 bar)
Valves1 (optional)
Total flow5.5 gpm (20.8 lpm)
