Cub Cadet 7195

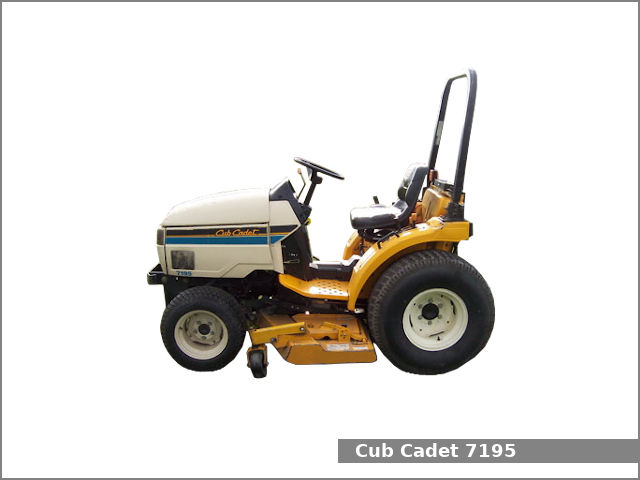

Cub Cadet 7195The Cub Cadet 7195 is a 4WD compact utility tractor from the 7000 series. This tractor was manufactured by Mitsubishi for distributor Cub Cadet from 1996 to 1997. The Cub Cadet 7195 is equipped with a 1.1 L (64.7 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Cub Cadet 7195 compact utility tractor used the Mitsubishi K3E engine. It is a 1.1 L, 1,060 cm2, (64.7 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. The compression ratio rating is 23.0:1. This engine produced 19.3 PS (14.2 kW; 19.0 HP) at 2,500 rpm of output power.

The Cub Cadet 7195 is equipped with hydrostatic power steering, expanding dry shoe brakes, two-post foldable ROPS, and 20.1 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 7195 compact utility tractor:

  • Mid-mount Cub Cadet 401: 1,520 mm (60 in) mower deck
  • Cub Cadet 416 loader

Cub Cadet 7195 Specifications

General Specifications
Model Cub Cadet 7195
Length 2,700 mm (106.3 in)
Width 1,170 mm (46.1 in)
Height (ROPS) 2,000 mm (78.7 in)
Wheel base 1,470 mm (57.9 in)
Weight 905 kg (1,995 lbs)
Fuel tank capacity 20.1 liters (5.3 US gal.; 4.4 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Mitsubishi K3E
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,060 cm2, (64.7 cu·in)
Bore and stroke 76.0 mm X 78.0 mm (2.99 in X 3.07 in)
Compression ratio 23.0:1
Horsepower 19.3 PS (14.2 kW; 19.0 HP) at 2,500 rpm
Starter Electric
Oil capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Coolant capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Expanding dry shoe
Differential lock Rear standard
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Transmission oil capacity 18.0 L (4.8 US. gal, 4 Imp. gal.)
Tires
Front tires Lawn/turf: 23×8.50-12
Ag: 6.00-12
Rear tires Lawn/turf: 33×12.50-15
Ag: 9.50-16
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 635 kg (1,400 lbs)
PTO (Power take-off shaft)
Middle PTO type Live or independent
Middle PTO speed 2,000 rpm
Rear PTO type Live or independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,133 psi (147.1 bar)
Pump flow 5.4 gpm (20.4 lpm)
Steering flow 3.2 gpm (12.1 lpm)
Total flow 8.6 gpm (32.6 lpm)
