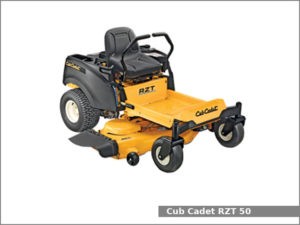

The Cub Cadet RZT 50 VT is a 2WD zero-turn mower from the RZT series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2009 to 2010. The Cub Cadet RZT 50 VT is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet RZT 50 VT zero-turn mower used the Briggs & Stratton 44P777 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of maximum output power.
The Cub Cadet RZT 50 VT is equipped with differential power steering, open operator station and 11.5 liters (3 US gal.; 2.5 Imp. gal) fuel tank. The Cub Cadet RZT 50 VT used mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades.
Cub Cadet RZT50VT Specifications
|Model||Cub Cadet RZT 50 VT|
|Length||1,700 mm (66.9 in)|
|Wheel base||1,100 mm (43.3 in)|
|Weight||239 kg (527 lbs)|
|Fuel tank capacity||11.5 liters (3 US gal.; 2.5 Imp. gal)|
|Cabin type||Open operator station|
|Engine model||Briggs & Stratton 44P777|
|Engine type||Four-stroke, air-cooled, V-twin|
|Displacement||0.7 L, 724 cm2, (44.2 cu·in)|
|Bore and stroke||79.0 mm X 73.0 mm (3.11 in X 2.87 in)|
|Horsepower||24.3 PS (17.9 kW; 24.0 HP)|
|Oil type||SAE 10W-40, 10W-30|
|Transmission and chassis|
|Steering type||Differential power|
|Transmission model||Hydro-Gear EZT|
|Gears||Infinite forward and reverse|
|Speed||Forward: 9.7 kmh (6 mph) Reverse: 4.8 (3 mph)|
|Front tires||Lawn/turf: 13×5.0-6|
|Rear tires||Lawn/turf: 18×9.5-8|
|PTO (Power take-off shaft)|
|Middle PTO type||Independent with electric clutch|
|Middle PTO spped||–|
