Farmall 300

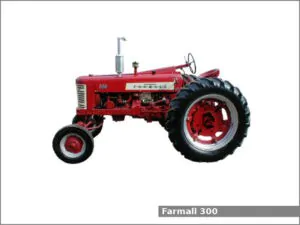

Farmall 300The Farmall 300 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) from 1954 to 1956. The Farmall 300 is equipped with a 2.8 L (169.0 cu·in) four-cylinder gasoline engine and one of two transmissions: a sliding gear transmission with 5 forward and 1 reverse gear or a partial power shift transmission with 10 forward and 2 reverse gears.

The Farmall 300 row-crop tractor used the International Harvester C169 engine. It is a 2.8 L, 2,769 cm2, (169.0 cu·in) four-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 108.0 mm (4.25 in) of the piston stroke. The compression ratio rating is 6.6:1.

Farmall 300 Specifications

General Specifications
Model Farmall 300
Length Tricycle: 3,450 mm (136.0 in)
Wide-front: 3,550 mm (139.8 in)
Width 2,540 mm (100 in)
Height 1,950 mm (76.8 in)
Wheel base Tricycle: 2,340 mm (92.2 in)
Wide-front: 2,430 mm (95.7 in)
Weight 2,430 kg (5,357 lbs)
Fuel tank capacity 64.3 liters (17 US gal.; 14.1 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model International Harvester C169
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.8 L, 2,769 cm2, (169.0 cu·in)
Bore and stroke 90.0 mm X 108.0 mm (3.54 in X 4.25 in)
Compression ratio 6.6:1
Horsepower
Starter Electric
Coolant capacity: 15.6 L (16.5 US. qt, 13.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type
Brakes
Transmission model
Transmission type Sliding gear
Gears 5 forward and 1 reverse
Speed Forward: 26.0 kmh (16.2 mph) Reverse: 5.0 (3.1 mph)
Transmission model Torque Amplifier
Transmission type Partial power shift
Gears 10 forward and 2 reverse
Speed Forward: 26.0 kmh (16.2 mph) Reverse: 5.0 (3.1 mph)
Tires
Front tires Ag: 5.50-16
Rear tires Ag: 11.00-38
Rear Hitch
Type IH Fast Hitch
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
