Farmall 340

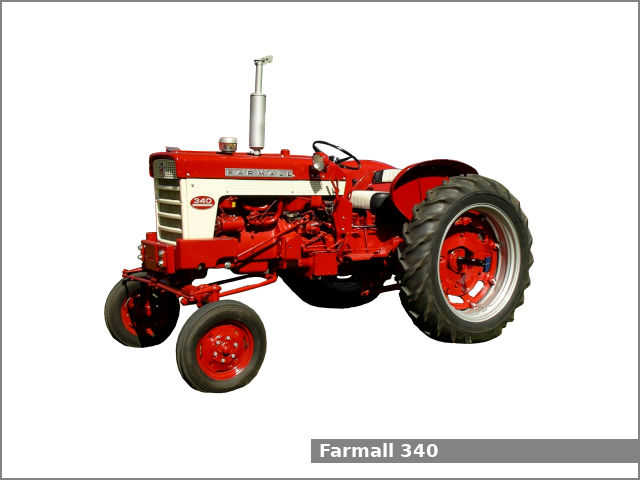

Farmall 340The Farmall 340 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) in Rock Island, Illinois, USA from 1958 to 1963.

The Farmall 340 is equipped with one of two engines: a 2.2 L (135.0 cu·in) four-cylinder gasoline engine or a 2.7 L (166.0 cu·in) four-cylinder diesel engine and one of two transmissions: a sliding gear with dry disc clutch transmission with 5 forward and 1 reverse gears or a partial power shift with dry disc clutch transmission with 10 forward and 2 reverse gears.

The tractor could be equipped with the following engines:

  • International Harvester C-135. It is a 2.2 L, 2,212 cm2, (135.0 cu·in) four-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 103.0 mm (4.06 in) of the piston stroke. The compression ratio rating is 7.6:1. This engine produced 47.6 PS (35.0 kW; 46.9 HP) at 2,000 rpm of output power.
  • International Harvester D-166. It is a 2.7 L, 2,720 cm2, (166.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 94.0 mm (3.7 in) and the piston stroke is 98.0 mm (3.86 in). The compression ratio rating is 19.2:1. This engine produced 47.6 PS (35.0 kW; 46.9 HP) at 2,000 rpm of output power.

The Farmall 340 is equipped with manual steering, differential mechanical dry disc brakes, an open operator station, and 58.0 liters (15.3 US gal.; 12.8 Imp. gal) fuel tank.

Farmall 340 Specifications

General Specifications
Model Farmall 340
Length 2,970 mm (116.9 in)
Width 1,620 mm (63.8 in)
Height 1,490 mm (58.7 in)
Wheel base 2,030 mm (79.9 in)
Weight (operating) Gasoline: 2,150 kg (4,740 lbs)
Diesel: 2,355 kg (5,192 lbs)
Fuel tank capacity 58.0 liters (15.3 US gal.; 12.8 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model International Harvester C-135
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.2 L, 2,212 cm2, (135.0 cu·in)
Bore and stroke 83.0 mm X 103.0 mm (3.27 in X 4.06 in)
Compression ratio 7.6:1
Horsepower 47.6 PS (35.0 kW; 46.9 HP) at 2,000 rpm
Torque 173.6 N·m (17.7 kg·m, 127.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 14.2 L (15 US. qt, 12.5 Imp. qt.)
Engine
Engine model International Harvester D-166
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.7 L, 2,720 cm2, (166.0 cu·in)
Bore and stroke 94.0 mm X 98.0 mm (3.7 in X 3.86 in)
Compression ratio 19.2:1
Horsepower 47.6 PS (35.0 kW; 46.9 HP) at 2,000 rpm
Torque 173.6 N·m (17.7 kg·m, 127.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 6.6 L (7 US. qt, 5.8 Imp. qt.)
Coolant capacity: 17.6 L (18.6 US. qt, 15.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical dry disc
Transmission model International Harvester
Transmission type Sliding gear with dry disc clutch
Gears 5 forward and 1 reverse
Speed Forward: 26.7 kmh (16.6 mph) Reverse: 3.7 kmh (2.3 mph)
Transmission model International Harvester Torque Amplifier
Transmission type Partial power shift with dry disc clutch
Gears 10 forward and 2 reverse
Speed Forward: 26.7 kmh (16.6 mph) Reverse: 3.7 kmh (2.3 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 12.4-36
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
