Farmall C

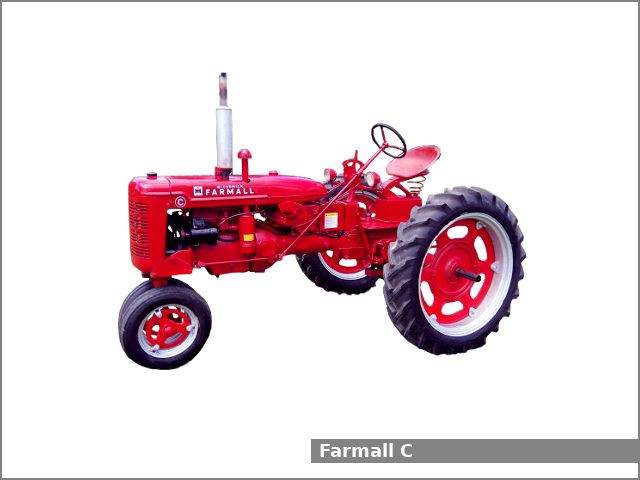

Farmall CThe Farmall C is a 2WD row-crop tractor manufactured by International Harvester from 1948 to 1951. The Farmall C is equipped with a 1.9 L four-cylinder gasoline engine and sliding gear type transmission with dry disc clutch and 4 forward and 1 reverse gear.

The Farmall C row-crop tractor used the International Harvester C113 engine. It is a 1.9 L, 1,853 cm2, (113.1 cu·in) four-cylinder natural aspirated gasoline engine with 76.0 mm (2.99 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 5.3:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) of output power.

The Farmall C is equipped with manual steering, manual contracting band brakes, open operator station and 41.6 liters (11 US gal.; 9.2 Imp. gal) fuel tank.

Farmall C Specifications

General Specifications
ModelFarmall C
Wheel base
Weight1,290 kg (2,845 lbs)
Fuel tank capacity41.6 liters (11 US gal.; 9.2 Imp. gal)
Cabin typeOpen operator station
Engine modelInternational Harvester C113
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeGasoline
Displacement1.9 L, 1,853 cm2, (113.1 cu·in)
Bore and stroke76.0 mm X 102.0 mm (2.99 in X 4.02 in)
Compression ratio5.3:1
Horsepower23.4 PS (17.2 kW; 23.0 HP)
Oil capacity:4.7 L (5 US. qt, 4.1 Imp. qt.)
Spark plug gap0.63 mm (0.025 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesManual contracting band
Transmission model
Transmission typeSliding gear with dry disc clutch
Gears4 forward and 1 reverse
Speed Forward: 16.5 kmh (10.3 mph) Reverse: 4.8 (3 mph)
Front tiresAg: 4.00-16
Rear tiresAg: 9-36
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540 rpm
