Farmall Super C

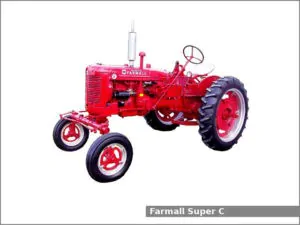

Farmall Super CThe Farmall Super C is a 2WD row-crop tractor manufactured by International Harvester from 1951 to 1954. The Farmall Super C is equipped with a 2.0 L four-cylinder gasoline engine and sliding gear transmission with 4 forward and 1 reverse gear.

The Farmall Super C row-crop tractor used the International Harvester C123 engine. It is a 2.0 L, 2,011 cm2, (122.7 cu·in) four-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 26.2 PS (19.3 KW; 26.0 HP) of output power.

The Farmall Super C is equipped with manual steering, differential mechanical disc brakes, open operator station and 41.6 liters (11 US gal.; 9.2 Imp. gal) fuel tank.

Farmall Super C Specifications

General Specifications
Model Farmall Super C
Length 3,120 mm (122.8 in)
Width –
Height 1,890 mm (74.4 in)
Wheel base 2,080 mm (81.9 in)
Weight 1,405 kg (3,097 lbs)
Fuel tank capacity 41.6 liters (11 US gal.; 9.2 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model International Harvester C123
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 2,011 cm2, (122.7 cu·in)
Bore and stroke 79.0 mm X 102.0 mm (3.11 in X 4.02 in)
Compression ratio 6.0:1
Horsepower 26.2 PS (19.3 KW; 25.9 HP)
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 14.2 L (15 US. qt, 12.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical disc
Transmission model –
Transmission type Sliding gear
Gears 4 forward and 1 reverse
Speed Forward: 16.6 kmh (10.3 mph) Reverse: 4.8 (3 mph)
Tires
Front tires Ag: 5.00-15
Rear tires Ag: 10-36
Three-Point Hitch
Caterogy IH Fast Hitch
Control type –
Lift capacity (at ends) –
PTO (Power take-off shaft)
Rear PTO type –
Rear PTO speed 540 rpm
