Farmall 100

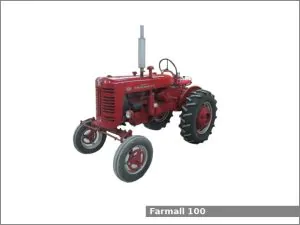

Farmall 100The Farmall 100 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) from 1954 to 1956. The Farmall 100 is equipped with a 2.0 L (122.7 cu·in) four-cylinder gasoline engine and a gear type transmission with 4 forward and 1 reverse gears.

The Farmall 100 row-crop tractor used the International Harvester C-123 engine. It is a 2.0 L, 2,011 cm2, (122.7 cu·in) four-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.5:1. T

The Farmall 100 is equipped with manual steering, contracting band brakes, an open operator station, and liters (0 US gal.; 0 Imp. gal) fuel tank.

Farmall 100 Specifications

General Specifications
Model Farmall 100
Length 2,710 mm (107 in)
Width
Height (steering wheel) 1,650 mm (65 in)
Wheel base 1,800 mm (71 in)
Weight 1,360 kg (3,000 lbs)
Fuel tank capacity
Battery
Cabin type Open operator station
Engine
Engine model International Harvester C-123
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 2,011 cm2, (122.7 cu·in)
Bore and stroke 79.0 mm X 102.0 mm (3.11 in X 4.02 in)
Compression ratio 6.5:1
Horsepower
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Contracting band
Transmission model
Transmission type Gear type
Gears 4 forward and 1 reverse
Speed Forward: 16.1 kmh (10 mph) Reverse: 4.8 kmh (3 mph)
Tires
Front tires
Rear tires
Rear Hitch
Type IH Fast Hitch
Farmall 100
1954 501
1955 1720
1956 12895
Final 18940
