Farmall 1066

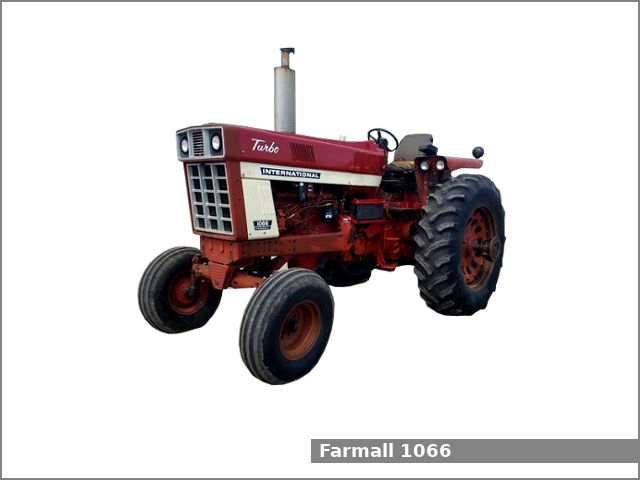

Farmall 1066The Farmall 1066 is a 2WD or 4WD row-crop tractor. This tractor was manufactured by the International Harvester in Rock Island, Illinois, USA from 1971 to 1976. The Farmall 1066 is equipped with 6.8 L diesel engine and one of three transmissions: gear type transmission with dry disc clutch (8 forward and 4 reverse gears), partial power shift transmission with dry disc clutch (16 forward and 8 reverse gears) and hydrostatic transmission with infinite (two-range) forward and reverse.

The Farmall 1066 row-crop tractor used 6.8 L, 6784 cm2, (414 cu·in) turbo diesel engine with 109.0 mm (4.29 in) of cylinder bore and 121.0 mm (4.76 in) of piston stroke. This engine produced 109.5 PS (80.5 kW; 108 HP) of maximum output power.

The Farmall 1066 is equipped with hydrostatic power steering, double dry disc, hydrostatic power self-adjusting brakes, open operator station, and 159.0 liters (42 US gal.; 35 Imp. gal) fuel tank.

Farmall 1066 Specifications

General Specifications
Model Farmall 1066
Length 4,190 mm (165 in)
Width 2,480 mm (97.6 in)
Height
Wheel base 2,660 mm (104.7 in)
Weight Gear: 5,510 kg (12,150 lbs)
Hydro: 5,590 kg (12,320 lbs)
Fuel tank capacity 159.0 liters (42 US gal.; 35 Imp. gal)
Battery Two 6V 204A
Cabin type Open operator station
Engine
Engine model International Harvester DT414
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,784 cm2, (414 cu·in)
Bore and stroke 109.0 mm X 121.0 mm (4.29 in X 4.76 in)
Horsepower 109.5 PS (80.5 kW; 108 HP) at rpm
Starter Electric
Oil capacity: 17.0 L (17.96 US. qt, 14.96 Imp. qt.)
Coolant capacity: 23.7 L (25.04 US. qt, 20.85 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optio
Steering type Hydrostatic power
Brakes Double dry disc, hydrostatic power self-adjusting
Transmission model
Transmission type Gear type with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 32.6 kmh (20.3 mph) Reverse: 16.1 (10 mph)
Transmission model Torque Amplifier
Transmission type Partial power shift with dry disc clutch
Gears 16 forward and 8 reverse
Speed Forward: 32.6 kmh (20.3 mph) Reverse: 16.1 (10 mph)
Transmission model
Transmission type Hydrostatic
Gears Infinite (two-range) forward and reverse
Speed Forward: 27.4 kmh (17 mph) Reverse: 11.3 (7 mph)
Tires
Front tires Ag: 11L-15
Rear tires Ag: 18.4-38
Three-Point Hitch
Caterogy III/II
Control type
Lift capacity 2,540 kg (5,600 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 12.0 gpm (45.4 lpm)
Total flow 21.0 gpm (79.5 lpm)
Steering flow 9.0 gpm (34.1 lpm)
