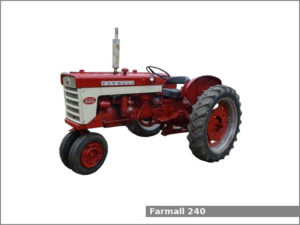

The Farmall 240 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) from 1958 to 1962. The Farmall 240 is equipped with a 2.0 L (122.7 cu·in) four-cylinder gasoline engine and a gear type transmission with 4 forward and 1 reverse gear and dry disc clutch.
The Farmall 240 row-crop tractor used the International Harvester C-123 engine. It is a 2.0 L, 2,011 cm2, (122.7 cu·in) four-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 7.3:1.
The Farmall 240 is equipped with manual steering, mechanical disc brakes, and an open operator station. This tractor could be equipped with the International Harvester 2001 loader.
Farmall 240 Specifications
General Specifications | |
Model | Farmall 240 |
Length | – |
Width | – |
Height | – |
Wheel base | 2,080 mm (81.9 in) |
Weight | 1,706 kg (3,761 lbs) |
Fuel tank capacity | – |
Battery | 6V |
Cabin type | Open operator station |
Engine | |
Engine model | International Harvester C-123 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Gasoline |
Displacement | 2.0 L, 2,011 cm2, (122.7 cu·in) |
Bore and stroke | 79.0 mm X 102.0 mm (3.11 in X 4.02 in) |
Compression ratio | 7.3:1 |
Horsepower | – |
Starter | Electric |
Oil capacity: | 4.7 L (5 US. qt, 4.1 Imp. qt.) |
Coolant capacity: | 14.2 L (15 US. qt, 12.5 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | Mechanical disc |
Transmission model | – |
Transmission type | Gear type with dry disc clutch |
Gears | 4 forward and 1 reverse |
Speed | – |
Tires | |
Front tires | Ag: – |
Rear tires | Ag: – |
Three-Point Hitch | |
Caterogy | IH Fast Hitch |
Control type | – |
Lift capacity (at ends) | – |
PTO (Power take-off shaft) | |
Rear PTO type | Live |
Rear PTO speed | 540 rpm |
