Farmall B

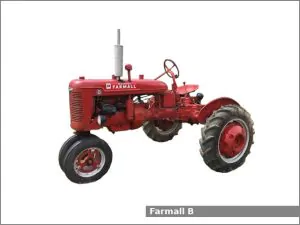

Farmall BThe Farmall B is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) in Chicago, Illinois, USA and Louisville, Kentucky, USA from 1939 to 1947.

The Farmall B is equipped with one of two engines: a 1.9 L (113.1 cu·in) four-cylinder gasoline engine or a 1.9 L (113.1 cu·in) four-cylinder kerosene engine and sliding gear transmission with 4 forward and 1 reverse gear.

The Farmall B used manual steering, an open operator station, and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • International Harvester C113. It is a 1.9 L, 1,853 cm2, (113.1 cu·in) four-cylinder natural aspirated gasoline engine with 76.0 mm (2.99 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 5.33:1.
  • International Harvester. It is a 1.9 L, 1,853 cm2, (113.1 cu·in) four-cylinder natural aspirated kerosene engine. The cylinder bore is 76.0 mm (2.99 in) and the piston stroke is 102.0 mm (4.02 in).

Farmall B Specifications

General Specifications
Model Farmall B
Length 2,740 mm (107.9 in)
Width 2,010 mm (79.1 in)
Height 1,650 mm (65 in)
Wheel base
Weight 1,088 kg (2,399 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model International Harvester C113
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 1.9 L, 1,853 cm2, (113.1 cu·in)
Bore and stroke 76.0 mm X 102.0 mm (2.99 in X 4.02 in)
Compression ratio 5.33:1
Horsepower
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 12.8 L (13.5 US. qt, 11.3 Imp. qt.)
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Kerosene
Displacement 1.9 L, 1,853 cm2, (113.1 cu·in)
Bore and stroke 76.0 mm X 102.0 mm (2.99 in X 4.02 in)
Horsepower
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 12.8 L (13.5 US. qt, 11.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model
Transmission type Sliding gear
Gears 4 forward and 1 reverse
Speed Forward: 16.1 kmh (10 mph) Reverse: 4.6 kmh (2.9 mph)
Tires
Front tires Ag: 6-12
Rear tires Ag: 9-24
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
