Fendt 514 Vario

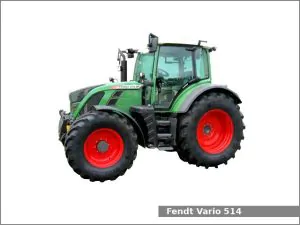

Fendt 514 VarioThe Fendt 514 Vario is a 4WD utility tractor from the 500 Vario series. This tractor has been manufactured by Fendt (a part of AGCO) from 2012. The Fendt 514 Vario is equipped with a 4.0 L (246.4 cu·in) four-cylinder diesel engine and a continuously variable transmission (CVT) transmission with infinite forward and reverse gears.

The Fendt 514 Vario utility tractor used the Deutz TCD 4.1 L4 engine. It is a 4.0 L, 4,038 cm2, (246.4 cu·in) four-cylinder turbocharged diesel engine with 101.0 mm (3.98 in) of the cylinder bore and 126.0 mm (4.96 in) of the piston stroke. This engine produced 156.4 PS (115.0 kW kW; 154.2 HP) at 2,100 rpm of output power and 649.1 N·m (66.2 kg·m, 478.4 ft·lb) at 1,450 rpm of torque.

The Fendt 514 Vario is equipped with power steering, wet disc brakes, cab (standard) with air-conditioning and 297.9 liters (78.7 US gal.; 65.5 Imp. gal) fuel tank.

Fendt 514 Vario Specifications

General Specifications
Model Fendt 514 Vario
Length 4,450 mm (175.2 in)
Width 2,500 mm (98.4 in)
Height (cab) 2,960 mm (116.5 in)
Wheel base 2,560 mm (100.8 in)
Ground clearance 530 mm (20.9 in)
Weight 6,400 kg (14,110 lbs)
Fuel tank capacity 297.9 liters (78.7 US gal.; 65.5 Imp. gal)
Battery 12V
Cabin type Cab standard with air-conditioning
Engine
Engine model Deutz TCD 4.1 L4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.0 L, 4,038 cm2, (246.4 cu·in)
Bore and stroke 101.0 mm X 126.0 mm (3.98 in X 4.96 in)
Horsepower 156.4 PS (115.0 kW kW; 154.2 HP) at 2,100 rpm
Torque 649.1 N·m (66.2 kg·m, 478.4 ft·lb) at 1,450 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model Vario ML90
Transmission type Continuously variable transmission (CVT)
Gears Infinite forward and reverse
Tires
Front tires Ag: 480/70R28
Rear tires Ag: 580/70R38
Three-Point Hitch
Category
Control type Position and draft control
Lift capacity 7,780 kg (17,155 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 1000 rpm
Rear PTO type Independent
Rear PTO speed 540/540E/1000, 540E/1000/1000E rpm
Hydraulic system
Hydraulic type Load sensing
Pressure 2900 psi (199.9 bar)
Valves Rear: 4 or 5
Pump flow 19.8 gpm (75.0 lpm)
Optional: 29.1 gpm (110.2 lpm)
Optional: 41.7 gpm (157.9 lpm)
