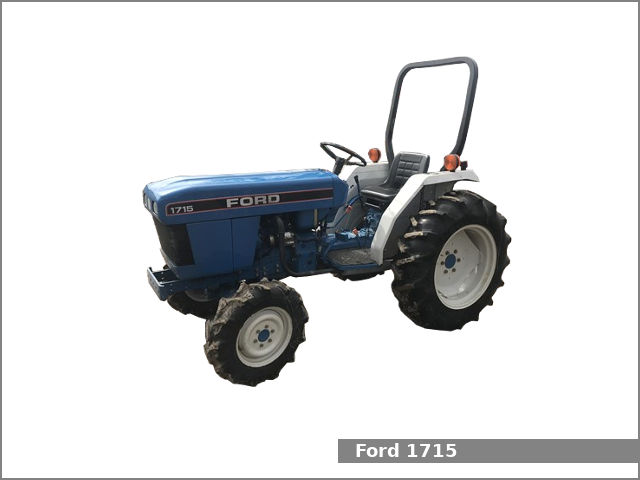

The Ford 1715 is a 2WD or 4WD compact utility tractor manufactured by Ford from 1992 to 1997. The Ford 1715 is equipped with a 1.3 L (81.2 cu·in) three-cylinder diesel engine and a transmission with 9 forward and 3 reverse gears.
The Ford 1715 compact utility tractor used the Shibaura J843 engine. It is a 1.3 L, 1,330 cm2, (81.2 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 80.0 mm (3.15 in) of the piston stroke. This engine produced 27.3 PS (20.1 kW; 27.0 HP) of output power.
Ford 1715 Specifications
| General Specifications |
| Model |
Ford 1715 |
| Length |
– |
| Width |
– |
| Height |
– |
| Wheel base |
1,600 mm (63 in) |
| Weight |
997 kg (2,198 lbs) |
| Fuel tank capacity |
26.5 liters (7 US gal.; 5.8 Imp. gal) |
| Battery |
12V |
| Cabin type |
Open operator station with two-post ROPS |
| Engine |
| Engine model |
Shibaura J843 |
| Engine type |
Four-stroke, liquid-cooled, inline |
| Cylinders |
3 |
| Fuel type |
Diesel |
| Displacement |
1.3 L, 1,330 cm2, (81.2 cu·in) |
| Bore and stroke |
84.0 mm X 80.0 mm (3.31 in X 3.15 in) |
| Horsepower |
27.3 PS (20.1 kW; 27.0 HP) |
| Starter |
Electric |
| Transmission and chassis |
| Chassis |
4×2 2WD or 4×4 MFWD 4WD |
| Steering type |
– |
| Brakes |
– |
| Transmission model |
– |
| Transmission type |
– |
| Gears |
9 forward and 3 reverse |
| Tires |
| Front tires |
Ag: 5.50-16 |
| Rear tires |
Ag: 11.2-24 |
| Three-Point Hitch |
| Caterogy |
I |
| Control type |
– |
| Lift capacity (at ends) |
740 kg (1,630 lbs) |
| PTO (Power take-off shaft) |
| Rear PTO type |
Transmission |
| Rear PTO speed |
540 rpm |
| Hydraulic system |
| Hydraulic type |
Open center |
| Hydraulic capacity |
23.1 L (6.1 US gal, 5.1 Imp. gal)
|
| Pump flow |
9.0 gpm (34.1 lpm) |
The Ford 1715 is a 2WD or 4WD compact utility tractor manufactured by Ford from 1992 to 1997. The Ford 1715 is equipped with a 1.3 L (81.2 cu·in) three-cylinder diesel engine and a transmission with 9 forward and 3 reverse gears.
