Ford 3415

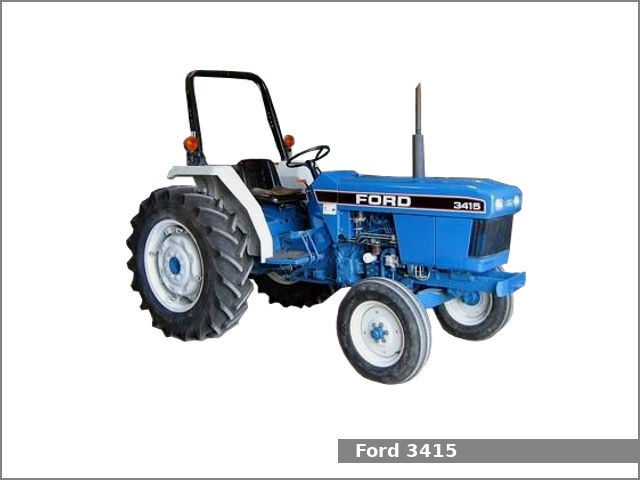

Ford 3415The Ford 3415 is a 2WD compact utility tractor manufactured by the Shibaura in Japan from 1993 to 2003. The Ford 3415 is equipped with 2.2 L four-cylinder Shibaura N844L diesel engine and transmission with 12 forward and 4 reverse gears

The Ford 3415 utility tractor used 2.2 L, 2,212 cm2, (135 cu·in) four-cylinder diesel engine with 84.0 mm (3.31 in) of cylinder bore and 100.0 mm (3.94 in) of piston stroke. This engine produced 44.6 PS (32.8 kW; 44 HP) of maximum output power.

The Ford 3415 is equipped with hydrostatic power steering, two-post ROPS and 42.0 liters (11.1 US gal.; 9.2 Imp. gal) fuel tank.

Ford 3415 Specifications

General Specifications
ModelFord 3415
Length
Width
Height
Wheel base1,890 mm (74.4 in)
Weight1,860 kg (4,100 lbs)
Fuel tank capacity42.0 liters (11.1 US gal.; 9.2 Imp. gal)
Battery12V
Cabin typeTwo-post ROPS.
Engine
Engine modelShibaura N844L
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement2.2 L, 2,212 cm2, (135 cu·in)
Bore and stroke84.0 mm X 100.0 mm (3.31 in X 3.94 in)
Compression ratio22.5:1
Horsepower44.6 PS (32.8 kW; 44 HP)
StarterElectric
Oil type10W-30
Oil capacity:10.6 L (11.2 US. qt, 9.33 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeHydrostatic power
Brakes
Transmission model
Transmission type
Gears12 forward and 4 reverse
Tires
Front tiresAg: 6.00-16
Rear tiresAg: 13.6-28
Three-Point Hitch
CaterogyI
Control type
Lift capacity1575 kg (3473 lbs)
PTO (Power take-off shaft)
Rear PTO typeLive
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Pump flow6.5 gpm (24.6 lpm)
