Ford 4000 (1968-1975)

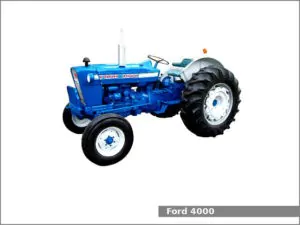

Ford 4000 (1968-1975)The Ford 4000 is a 2WD utility tractor. The first generation was manufactured from 1962 to 1965, the second from 1965 to 1967. This is the third generation was manufactured by Ford in Highland Park, Michigan, USA from 1968 to 1975. The Ford 4000 is equipped with one of two engines: a 3.3 L three-cylinder diesel or gasoline engine and one of two transmissions: the Dual Range transmission with 8 forward and 2 reverse gears or the Select-O-Speed transmission with 10 forward and 2 reverse gears.

The Ford 4000 utility tractor used the Ford gasoline or diesel engine. It is a 3.3 L, 3,294 cm2, (201.0 cu·in) three-cylinder natural aspirated engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.8:1 for the diesel version.

The Ford 4000 is equipped with manual or hydraulic power steering, mechanical wet disc brakes, open operator station and 60.5 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

Following attachments are available for the Ford 4000 utility tractor:

  • Ford 771 loader
  • Ford 772 loader

Ford 4000 Specifications

General Specifications
Model Ford 4000
Length 3,470 mm (136.6 in)
Width 1,710 mm (67.3 in)
Height 2,150 mm (84.6 in)
Wheel base 2,140 mm (84.3 in)
Weight 2,215 kg (4,885 lbs)
Fuel tank capacity 60.5 liters (16 US gal.; 13.3 Imp. gal)
Battery 12V, 80Ah (gasoline), 128Ah (diesel)
Cabin type Open operator station
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.3 L, 3294 cm2, (201 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 16.5:1
Horsepower
Starter Electric
Oil capacity: 7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity: 13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Gasoline
Displacement 3.3 L, 3294 cm2, (201 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Horsepower
Starter Electric
Oil capacity: 7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity: 13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual or hydraulic power
Brakes Mechanical wet disc
Final drive Inboard planetary
Transmission model Dual Range
Transmission type Gear type
Gears 8 forward and 2 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 13.0 (8.1 mph)
Transmission oil capacity 12.5 L (3.3 US. gal, 2.7 Imp. gal.)
With independent PTO: 16.0 L (4.2 US. gal, 3.5 Imp. gal.)
Transmission model Select-O-Speed
Transmission type Gear type
Gears 10 forward and 2 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 8.2 (5.1 mph)
Transmission oil capacity 11.6 L (3.1 US. gal, 2.6 Imp. gal.)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 12.4-38
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at ends) 1450 kg (3197 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission or independent
Rear PTO speed 540, 1,000 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2500 psi (172.4 bar)
Pump flow 5.4 gpm (20.4 lpm)
Steering flow 4.5 gpm (17 lpm)
Total flow 9.9 gpm (37.5 lpm)
