Ford 5030

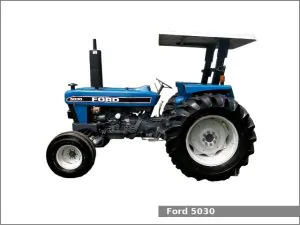

Ford 5030The Ford 5030 is a 2WD or 4WD utility tractor manufactured by Ford from 1992 to 1999. The Ford 5030 is equipped with a 4.2 L (255.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 16 forward and 8 reverse gears or transmission with 8 forward and 8 reverse gears.

The Ford 5030 utility tractor used the Ford engine. It is a 4.2 L, 4,178 cm2, (255.0 cu·in) four-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 62.8 PS (46.2 kW; 62.0 HP) at 2,200 rpm of PTO output power.

The Ford 5030 is equipped with hydrostatic power steering, differential wet disc brakes, two-post ROPS or Cab (optional), and 65.5 liters (17.3 US gal.; 14.4 Imp. gal) fuel tank.

Ford 5030 Specifications

General Specifications
Model Ford 5030
Wheel base 2,270 mm (89.4 in)
Weight (operating) 4WD ROPS: 2,715 kg (5,986 lbs)
Fuel tank capacity 65.5 liters (17.3 US gal.; 14.4 Imp. gal)
Cabin type Two-post ROPS or Cab (optional)
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.2 L, 4,178 cm2, (255.0 cu·in)
Bore and stroke 112.0 mm X 107.0 mm (4.41 in X 4.21 in)
Compression ratio 16.3:1
Horsepower PTO 62.8 PS (46.2 kW; 62.0 HP) at 2,200 rpm
Starter Electric
Coolant capacity: 12.5 L (13.2 US. qt, 11 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Differential wet disc
Transmission model
Transmission type Partial power shift
Gears 16 forward and 8 reverse
Transmission model
Transmission type
Gears 8 forward and 8 reverse
Front tires Ag: 7.50-15
Rear tires Ag: 13.6-28
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 1,395 kg (3,075 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 48.1 L (12.7 US. gal, 10.6 Imp. gal.)
Pump flow 8.0 gpm (30.3 lpm)
