Ford 7610

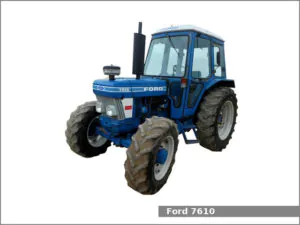

Ford 7610The Ford 7610 is a 2WD or 4WD utility tractor from the 10 series. This tractor was manufactured by Ford from 1982 to 1992. The Ford 7610 is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and one of three transmissions: a dual-range tansmission with 8 forward and 2 reverse gears, a partial power shift transmission with 16 forward and 4 reverse gears or a synchromesh partial power shift transmission with 16 forward and 8 reverse gears.

The Ford 7610 utility tractor used the Ford engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 15.6:1. This engine produced 98.3 PS (72.3 kW; 97.0 HP) at 2,100 rpm of output power and 377.0 N·m (38.4 kg·m, 277.8 ft·lb) of torque.

The Ford 7610 is equipped with power steering, differential mechanical wet disc brakes, two-post ROPS or Cab with air-conditioning (optional), and 130.6 liters (34.5 US gal.; 28.7 Imp. gal) fuel tank.

Following attachments are available for the Ford 7610 utility tractor:

  • Ford 777B loader
  • Ford 777D loader
  • Ford 777F loader

Ford 7610 Specifications

General Specifications
Model Ford 7610
Length 2WD: 3,680 mm (144.9 in)
4WD: 3,880 mm (152.8 in)
Width 1,950 mm (76.8 in)
Height ROPS: 2,430 mm (95.7 in)
Cab: 2,700 mm (106.3 in)
Wheel base 2WD: 2,220 mm (87.4 in)
4WD: 2,250 mm (88.6 in)
Ground clearance (front axle) 2WD: 460 mm (18.1 in)
4WD: 470 mm (18.5 in)
Weight 2,692 kg (5,935 lbs)
Fuel tank capacity 130.6 liters (34.5 US gal.; 28.7 Imp. gal)
Battery 12V, 128Ah
Cabin type Two-post ROPS or Cab with air-conditioning (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 15.6:1
Horsepower 98.3 PS (72.3 kW; 97.0 HP) at 2,100 rpm
Torque 377.0 N·m (38.4 kg·m, 277.8 ft·lb)
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 17.0 L (18 US. qt, 15 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential mechanical wet disc
Transmission model Dual-range
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 30.0 kmh (18.6 mph) Reverse: 14.4 kmh (8.9 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model Dual Power
Transmission type Partial power shift
Gears 16 forward and 4 reverse
Speed Forward: 30.0 kmh (18.6 mph) Reverse: 14.4 kmh (8.9 mph)
Transmission model Dual Power
Transmission type Synchromesh partial power shift
Gears 16 forward and 8 reverse
Speed Forward: 30.6 kmh (19 mph) Reverse: 11.2 kmh (7 mph)
Tires
Front tires Ag: 7.50-16 (2WD), 11.2-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm /24 in) 2,030 kg (4,480 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Valves 1
Pump flow 18.2 gpm (68.9 lpm)
Steering flow 2.74 gpm (10.4 lpm)
