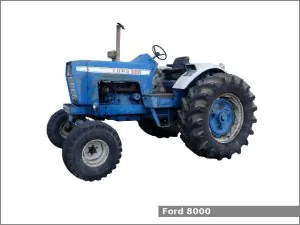

Ford 8000

Ford 8000The Ford 8000 is a 2WD row-crop tractor manufactured by Ford in Highland Park, Michigan, USA from 1968 to 1972. The Ford 8000 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and one of two transmissions: a gear type transmission with 8 forward and 2 reverse gears or a two-speed power shift transmission with 16 forward and 4 reverse gears.

The Ford 8000 row-crop tractor used the Ford engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 117.1 PS (86.1 kW; 115.5 HP) at 2,300 rpm of output power.

The Ford 8000 is equipped with power steering, differential hydraulic wet disc brakes, an open operator station or cab (optional) and 162.8 liters (43 US gal.; 35.8 Imp. gal) fuel tank.

Following attachments are available for the Ford 8000 row-crop tractor:

  • Ford 773 loader
  • Ford 774 loader

Ford 8000 Specifications

General Specifications
Model Ford 8000
Length Row-crop: 3,930 mm (154.7 in)
Dual purpose: 3,760 mm (148 in)
Width 2,150 mm (84.6 in)
Height (hood) Row-crop: 1,850 mm (72.8 in)
Dual purpose: 1,870 mm (73.6 in)
Wheelbase Row-crop: 2,740 mm (107.9 in)
All purpose: 2,320 mm (91.3 in)
Ground clearance (front axle) Row-crop: 600 mm (23.6 in)
All purpose: 640 mm (25.2 in)
Weight (operating) 4,525 kg (9,976 lbs)
Fuel tank capacity 162.8 liters (43 US gal.; 35.8 Imp. gal)
Battery 12V, 128Ah
Cabin type Open operator station or cab (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 16.5:1
Horsepower 117.1 PS (86.1 kW; 115.5 HP) at 2,300 rpm
Torque 384.4 N·m (39.2 kg·m, 283.3 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Coolant capacity: 17.0 L (18 US. qt, 15 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Differential hydraulic wet disc
Differential lock Hydraulic
Transmission model Dual Range
Transmission type Gear type
Gears 8 forward and 2 reverse
Speed Forward: 27.8 kmh (17.3 mph) Reverse: 12.2 kmh (7.6 mph)
Transmission oil capacity 11.4 L (3 US. gal, 2.5 Imp. gal.)
Transmission model Dual Power
Transmission type Two-speed power shift
Gears 16 forward and 4 reverse
Speed Forward: 27.8 kmh (17.3 mph) Reverse: 12.2 kmh (7.6 mph)
Transmission oil capacity 11.4 L (3 US. gal, 2.5 Imp. gal.)
Tires
Front tires Ag: 7.50-18 (all purpose), 7.50-16 (row crop)
Rear tires Ag: 18.4-34 (all purpose), 16.9-34 (row crop)
Three-Point Hitch
Category II
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Pump flow 12.0 gpm (45.4 lpm)
