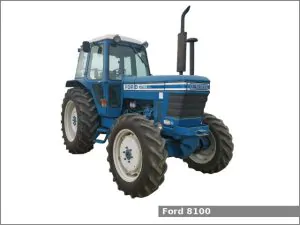

The Ford 8100 is a 2WD or 4WD row-crop tractor manufactured by County for distributor Ford from 1978 to 1981.
The Ford 8100 used a 6.2 L (380.0 cu·in) six-cylinder diesel engine and transmission with 16 forward and 4 reverse gears.
This row-crop tractor is equipped with power steering, Cab (standard) and 200.0 liters (52.8 US gal.; 44 Imp. gal) fuel tank.
The tractor could be equipped with the following engines:
- Ford 2715E . It is a 6.2 L, 6,227 cm2, (380.0 cu·in) six-cylinder natural aspirated diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. This engine produced 116.7 PS (85.8 kW; 115.1 HP) at 2,100 rpm of output power.
- Ford 2714E (France and Switzerland) . It is a 6.2 L, 6,227 cm2, (380.0 cu·in) six-cylinder natural aspirated diesel engine. The cylinder bore is 107.0 mm (4.21 in) and the piston stroke is 115.0 mm (4.53 in). This engine produced 106.5 PS (78.3 kW; 105 HP) at 2,100 rpm of output power.
Ford 8100 Specifications
| General Specifications | |
| Model | Ford 8100 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | – |
| Weight | 4,000 kg (8,818 lbs) |
| Fuel tank capacity | 200.0 liters (52.8 US gal.; 44 Imp. gal) |
| Battery | – |
| Cabin type | Cab (standard) |
| Engine | |
| Engine model | Ford 2715E |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 6.2 L, 6,227 cm2, (380.0 cu·in) |
| Bore and stroke | 107.0 mm X 115.0 mm (4.21 in X 4.53 in) |
| Horsepower | 116.7 PS (85.8 kW; 115.1 HP) at 2,100 rpm |
| Starter | Electric |
| Engine | |
| Engine model | Ford 2714E |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 6.2 L, 6,227 cm2, (380.0 cu·in) |
| Bore and stroke | 107.0 mm X 115.0 mm (4.21 in X 4.53 in) |
| Horsepower | 106.5 PS (78.3 kW; 105 HP) at 2,100 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | – |
| Transmission model | – |
| Transmission type | – |
| Gears | 16 forward and 4 reverse |
| Tires | |
| Front tires | Ag: 11.00-16 |
| Rear tires | Ag: 18.4-34 |
| PTO (Power take-off shaft) | |
| Rear PTO type | – |
| Rear PTO speed | 540/1000 rpm |
