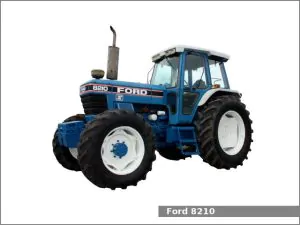

Ford 8210

Ford 8210The Ford 8210 is a 2WD or 4WD row-crop tractor manufactured by Ford from 1982 to 1991. The Ford 8210 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and a two-speed power shift transmission with 16 forward and 8 reverse gears.

The Ford 8210 row-crop tractor used the Ford engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 116.7 PS (85.8 kW; 115.0 HP) at 2,300 rpm of output power.

The Ford 8210 is equipped with power steering, mechanical wet disc brakes, cab (standard) with air-conditioning, and 178.0 liters (47 US gal.; 39.2 Imp. gal) fuel tank.

Ford 8210 Specifications

General Specifications
Model Ford 8210
Length 4,480 mm (176.4 in)
Width
Height (cab) 2,890 mm (113.8 in)
Wheel base 2,780 mm (109.4 in)
Ground clearance (front axle) 490 mm (19.3 in)
Weight 2WD: 3,960 kg (8,730 lbs)
4WD: 4,250 kg (9,370 lbs)
Fuel tank capacity 178.0 liters (47 US gal.; 39.2 Imp. gal)
Battery 12V, 128Ah
Cabin type Cab (standard) with air-conditioning
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 16.3:1
Horsepower 116.7 PS (85.8 kW; 115.0 HP) at 2,300 rpm
Starter Electric
Oil capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Coolant capacity: 21.3 L (22.5 US. qt, 18.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Mechanical wet disc
Differential lock Mechanical rear
Transmission model Dual Power
Transmission type Two-speed power shift with dry disc clutch
Gears 16 forward and 8 reverse
Speed Forward: 27.3 kmh (17 mph) Reverse: 10.0 kmh (6.2 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Tires
Front tires Ag: 14.9-24, 14.9-28
Rear tires Ag: 18.4-34, 18.4-38, 16.9-38
Three-Point Hitch
Category II
Control type Position control and top-link draft sensing
Lift capacity (at 610 mm/ 24 in) 2,010 kg (4,430 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Valves 2 to 4
Pump flow 18.2 gpm (68.9 lpm)
