Ford 9000

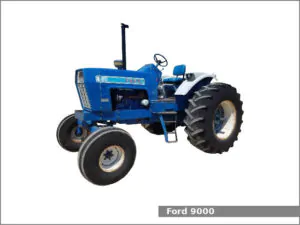

Ford 9000The Ford 9000 is a 2WD row-crop tractor manufactured by Ford from 1970 to 1972. The Ford 9000 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and one of two transmissions: a transmission with 8 forward and 2 reverse gears or a partial power shift transmission with 16 forward and 4 reverse gears. This tractor was available in two versions: 9100 – all-purpose tractor or 9200 – row-crop tractor.

The Ford 9000 row-crop tractor used the Ford engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 147 PS (108.1 kW; 145.0 HP) at 2,200 rpm of output power.

The Ford 9000 is equipped with power steering, differential hydraulic wet disc brakes, open operator station or Cab (optional) and 163.0 liters (43.1 US gal.; 35.9 Imp. gal) fuel tank.

Following attachments are available for the Ford 9000 row-crop tractor:

  • Ford 773 loader
  • Ford 774 loader

Ford 9000 Specifications

General Specifications
ModelFord 9000
Length 9100: 4,010 mm (157.9 in)
9200: 3,830 mm (150.8 in)
Width 9100: 2,090 mm (82.3 in)
9200: 2,310 mm (90.9 in)
Height (exhaust) 9100: 2,910 mm (114.6 in)
9200: 2,970 mm (116.9 in)
Wheel base 9100: 2,740 mm (107.9 in)
9200: 2,320 mm (91.3 in)
Weight 9100: 4,680 kg (10,318 lbs)
9200: 4,445 kg (9,800 lbs)
Fuel tank capacity163.0 liters (43.1 US gal.; 35.9 Imp. gal)
Battery12V, 128 Ah
Cabin typeOpen operator station or Cab (optional)
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio16.5:1
Horsepower147 PS (108.1 kW; 145.0 HP) at 2,200 rpm
Torque507.1 N·m (51.7 kg·m, 373.7 ft·lb) at 1,600 rpm
StarterElectric
Oil capacity:13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Coolant capacity: 22.7 L (24 US. qt, 20 Imp. qt.)
24.1 L (25.5 US.qt, 21.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesDifferential hydraulic wet disc
Final drivePlanetary
Transmission model
Transmission type
Gears8 forward and 2 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 12.4 (7.7 mph)
Transmission oil capacity60.6 L (16 US. gal, 13.3 Imp. gal.)
Transmission modelDual Power
Transmission typePartial power shift
Gears16 forward and 4 reverse
Transmission oil capacity65.3 L (17.3 US. gal, 14.4 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 18.4-34
Three-Point Hitch
CategoryIII/II
Control typePosition control and lower-link draft sensing
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1,000 rpm
Hydraulic system
Hydraulic typeOpen center
Pressure2500 psi (172.4 bar)
Pump flow16.0 gpm (60.6 lpm)
Steering flow4.2 gpm (15.9 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
