Ford TW-15

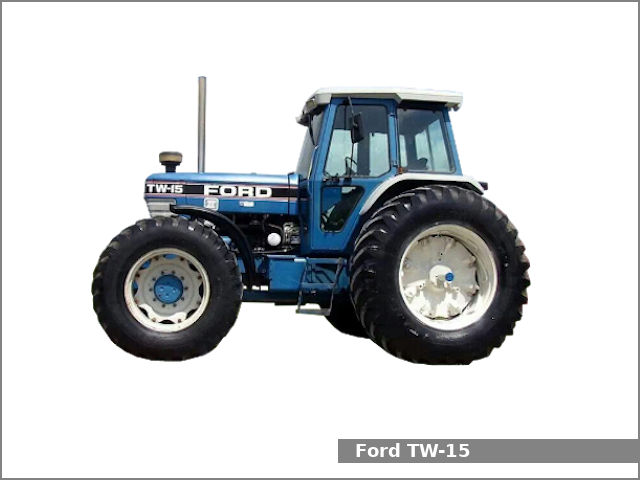

Ford TW-15The Ford TW-15 is a 2WD or 4WD row-crop tractor from the TW series. This tractor was manufactured by Ford in Antwerp, Belgium from 1983 to 1990. The Ford TW-15 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and one of two transmissions: a two-speed power shift with dry disc clutch transmission with 16 forward and 4 reverse gears or transmission with 24 forward and 6 reverse gears.

The Ford TW-15 row-crop tractor used the Ford engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 15.6:1. This engine produced 142 PS (104.4 kW; 140 HP) at 2,200 rpm of output power and 520.7 N·m (53.1 kg·m, 383.8 ft·lb) at 1,600 rpm of peak torque.

The TW15 is equipped with power steering, differential hydraulic wet disc brakes, two-post fixed ROPS or cab with air-conditioning (optional), and 219.5 liters (58 US gal.; 48.3 Imp. gal) fuel tank.

Following attachments are available for the Ford TW-15 row-crop tractor:

  • Ford 773 loader
  • Ford 7412 loader

Ford TW-15 Specifications

General Specifications
Model Ford TW-15
Length 4,140 mm (163 in)
Width 2,120 mm (83.5 in)
Height ROPS: 2,870 mm (113 in)
Cab: 2,940 mm (115.7 in)
Wheel base 2WD: 2,740 mm (107.9 in)
4WD: 2,660 mm (104.7 in)
Ground clearance 410 mm (16.1 in)
Weight (shipping) ROPS: 5,150 kg (11,354 lbs)
Fuel tank capacity 219.5 liters (58 US gal.; 48.3 Imp. gal)
Battery 12V, 128Ah
Cabin type Two-post fixed ROPS or cab with air-conditioning (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 15.6:1
Horsepower 142 PS (104.4 kW; 140 HP) at 2,200 rpm
Torque 520.7 N·m (53.1 kg·m, 383.8 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Coolant capacity: 20.8 L (22 US. qt, 18.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Differential lock Hydraulic rear
Transmission model Dual Power
Transmission type Two-speed power shift with dry disc clutch
Gears 16 forward and 4 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 13.1 kmh (8.1 mph)
Transmission oil capacity 87.1 L (23 US. gal, 19.2 Imp. gal.)
Transmission model
Transmission type
Gears 24 forward and 6 reverse
Tires
Front tires Ag: 10.00-16 (2WD), 11.00-16 (2WD), 14L-16 (2WD),
14.9-24 (4WD), 14.9-28 (4WD), 16.9-28 (4WD)
Rear tires Ag: 18.4-38, 20.8-38
Three-Point Hitch
Category II/I
III (optional)
Control type
Lift capacity (at 610 mm/ 24 in) Standard: 3,245 kg (7,155 lbs)
Optioanl: 4,285 kg (9,450 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 69.1 L (18.3 US. gal, 15.2 Imp. gal.)
Series II: 90.1 L (23.8 US. gal, 19.8 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Valves 2
Pump flow 15.3 gpm (57.9 lpm)
Steering flow 4.2 gpm (15.9 lpm)
Total flow 27.5 gpm (104.1 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
